Name: PT02A-20-16P
Brand: Amphenol Industrial Operations
SKU: PT02A-20-16P
Price: 42.65000 USD
Availability: InStock

new

PT02A-20-16P

Manufacturer part number:PT02A-20-16P

Manufacturer:Amphenol Industrial Operations

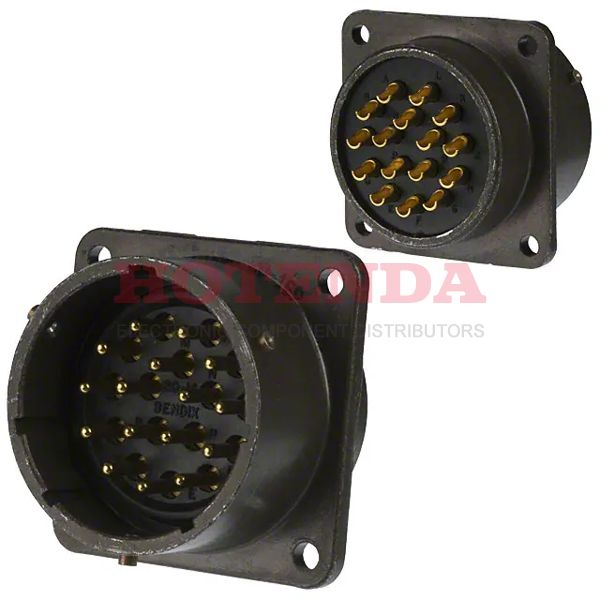

Description:Receptacle, Male Pins Aluminum Panel Mount 16 Positions Solder Cup Gold Olive Drab Chromate over Cadmium Bulk N (Normal) Bayonet Lock

Case Package:SOT-23

Datasheet:PT02A-20-16P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Box, Flanges, Panel
Mounting Type	Panel Mount
Mounting Feature	Flange
Insulation Material	Rubber
Shell Material	Aluminum
Insert Material	Neoprene
Body Material	Aluminium
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	MIL-DTL-26482 Series I, PT
Published	2006
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
ECCN Code	EAR99
Connector Type	Receptacle, Male Pins
Number of Positions	16
Color	Olive Drab
Applications	Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender	Receptacle
Voltage - Rated	1kV
HTS Code	8536.69.40.20
Fastening Type	Bayonet Lock
Contact Finish - Mating	Gold
Orientation	N (Normal)
Shielding	Unshielded
Current Rating	13A
Military Standard	MIL-DTL-26482
Shell Finish	Olive Drab Chromate over Cadmium
Shell Size - Insert	20-16
Approval Agency	UL
Contact Gender	Male
Contact Style	Pin
Plating	Cadmium, Chromate
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	16 AWG
Body Plating	Cadmium
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

PT02A-20-16P Product Details

PT02A-20-16P Overview

This product is packaged in a Receptacle, Male Pins box.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the MIL-DTL-26482 Series I, PT Series.By Box, Flanges, Panel, the part is mounted.Operating temperature is set to -55°C~125°C.
