Name: 97-36-7P
Brand: Amphenol Industrial Operations
SKU: 97-36-7P
Price: 69.75000 USD
Availability: InStock

new

97-36-7P

Manufacturer part number:97-36-7P

Manufacturer:Amphenol Industrial Operations

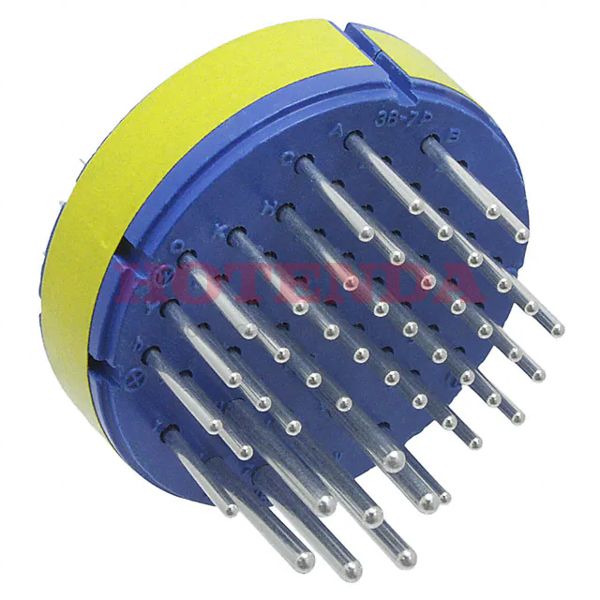

Description:Insert, Male Pins47 PositionsSolder CupSilverBulkN (Normal)

Case Package:SOT-23

Datasheet:97-36-7P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Contact Plating	Silver
Insert Material	Diallyl Phthalate (DAP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2005
Series	97
Feature	Insert Only, Requires Shell
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
Connector Type	Insert, Male Pins
Number of Positions	47
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Applications	Automotive, Industrial
Gender	Male
Voltage - Rated DC	700V
Contact Finish - Mating	Silver
Orientation	N (Normal)
Shielding	Unshielded
Current Rating	23A
Military Standard	MIL-DTL-5015
Shell Size - Insert	36-7
Approval Agency	CSA, UL
Number of Contacts	47
Operating Supply Voltage	700V
Number of Poles	47
REACH SVHC	No SVHC
RoHS Status	Non-RoHS Compliant

97-36-7P Product Details

97-36-7P Overview

A Insert, Male Pins packaging is included.Packaging is performed using a Bulk case.The product is part of the 97 Series.Whenever the temperature is below 125°C, it's best.Temperatures below -55°C are required for this device.As a result of its Insert Only, Requires Shell feature, it possesses a great deal of power.Device runs at -55°C~125°C Operating Temperature.
