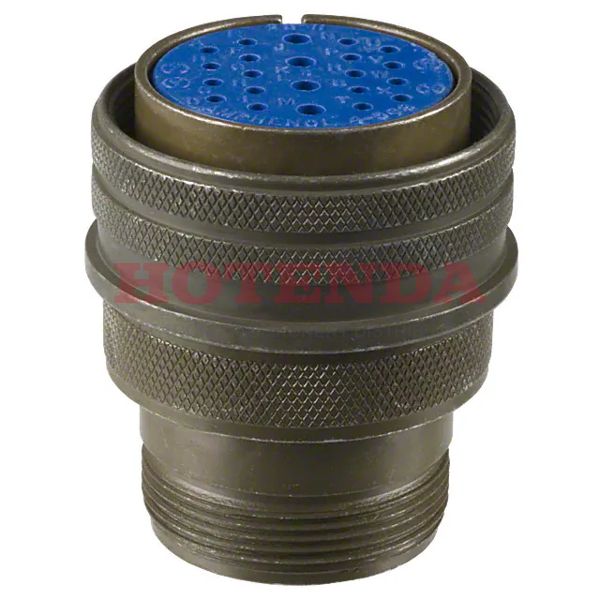

Name: 97-3106A-28-11S(946)
Brand: Amphenol Industrial Operations
SKU: 97-3106A-28-11S(946)
Price: 151.23000 USD
Availability: InStock

new

97-3106A-28-11S(946)

Manufacturer part number:97-3106A-28-11S(946)

Manufacturer:Amphenol Industrial Operations

Description:Plug, Female Sockets Aluminum Alloy Free Hanging (In-Line) 22 Positions Solder Cup Silver Black Zinc Alloy Bulk N (Normal) Threaded

Case Package:SOT-23

Datasheet:97-3106A-28-11S(946) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Package / Case	Metal
Insulation Material	Plastic
Shell Material	Aluminum Alloy
Insert Material	Diallyl Phthalate (DAP)
Backshell Material, Plating	Aluminum Alloy, Black Zinc Alloy
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	97
Published	2006
JESD-609 Code	e4
Feature	Backshell, Coupling Nut
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
Connector Type	Plug, Female Sockets
Number of Positions	22
Color	Black
Applications	Automotive, Industrial
Additional Feature	STANDARD: MIL-C-5015
Fastening Type	Threaded
Contact Finish - Mating	Silver
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	22
Orientation	N (Normal)
Shielding	Unshielded
Reach Compliance Code	unknown
Current Rating	23A
Military Standard	MIL-DTL-5015
Shell Finish	Black Zinc Alloy
Shell Size - Insert	28-11
Approval Agency	CSA, UL
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	Female
Empty Shell	NO
Backshell Type	SOLID
Contact Style	Socket
Environmental Characteristics	ENVIRONMENT RESISTANT
Plating	Cadmium, Chromate
RoHS Status	RoHS Compliant
Lead Free	Lead Free

97-3106A-28-11S(946) Product Details

97-3106A-28-11S(946) Overview

Currently, it is packaged in Plug, Female Sockets.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the 97 Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as STANDARD: MIL-C-5015, to name a few.Metal means there is a device enclosed in the packaging.A number of features make the Backshell, Coupling Nut feature more powerful.Free Hanging represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
