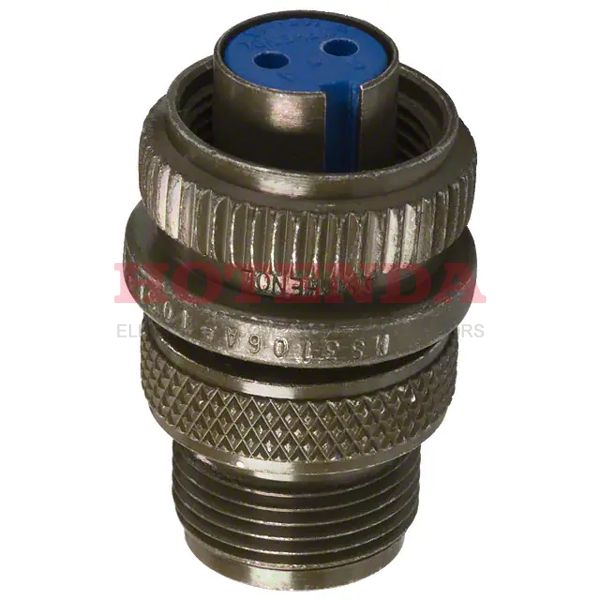

Name: 97-3106A-10SL-4S(946)
Brand: Amphenol Industrial Operations
SKU: 97-3106A-10SL-4S(946)
Price: 36.91000 USD
Availability: InStock

new

97-3106A-10SL-4S(946)

Manufacturer part number:97-3106A-10SL-4S(946)

Manufacturer:Amphenol Industrial Operations

Description:Plug, Female SocketsAluminum AlloyFree Hanging (In-Line)2 PositionsSolder CupSilverBlack Zinc AlloyBulkN (Normal)Threaded

Case Package:SOT-23

Datasheet:97-3106A-10SL-4S(946) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Package / Case	Metal
Insulation Material	Plastic
Shell Material	Aluminum Alloy
Insert Material	Diallyl Phthalate (DAP)
Backshell Material, Plating	Aluminum Alloy, Black Zinc Alloy
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2006
Series	97
JESD-609 Code	e4
Feature	Backshell, Coupling Nut
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
ECCN Code	EAR99
Connector Type	Plug, Female Sockets
Number of Positions	2
Color	Black
Applications	Automotive, Industrial
Gender	Male
Voltage - Rated	700V
Additional Feature	STANDARD: MIL-C-5015
Fastening Type	Threaded
Contact Finish - Mating	Silver
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	2
Orientation	N (Normal)
Shielding	Unshielded
Current Rating	13A
Military Standard	MIL-DTL-5015
Shell Finish	Black Zinc Alloy
Shell Size - Insert	10SL-4
Approval Agency	CSA, UL
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	Female
Empty Shell	NO
Backshell Type	SOLID
Contact Style	Socket
Environmental Characteristics	ENVIRONMENT RESISTANT
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	22 AWG
Wire/Cable Gauge	16 AWG
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

97-3106A-10SL-4S(946) Product Details

97-3106A-10SL-4S(946) Overview

Packaging is Plug, Female Sockets.Free Hanging (In-Line) is the mounting type of the device.To package the product, a Bulk case is used.This is from the 97 Series.Other features include STANDARD: MIL-C-5015, to name just a few.An enclosed device is contained in the package with the Metal.A number of advantages can be derived from its Backshell, Coupling Nut feature.In this case, Cable, Free Hanging mounts the part.It operates at an operating temperature of -55°C~125°C.
