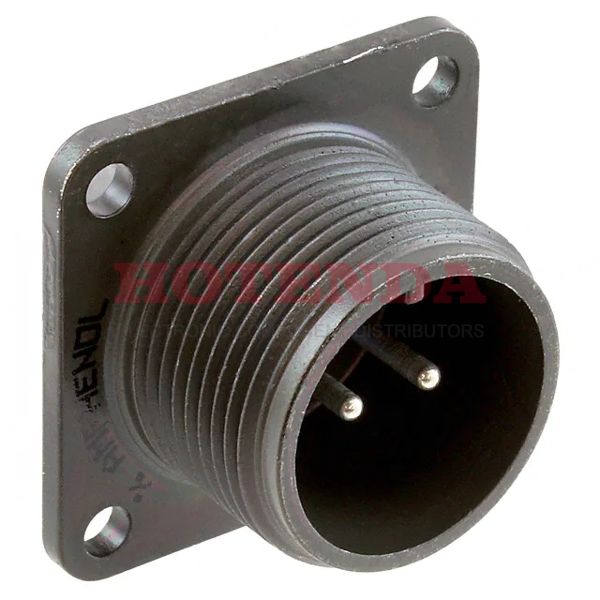

Name: 97-3102A-14S-9P
Brand: Amphenol Industrial Operations
SKU: 97-3102A-14S-9P
Price: 13.21000 USD
Availability: InStock

new

97-3102A-14S-9P

Manufacturer part number:97-3102A-14S-9P

Manufacturer:Amphenol Industrial Operations

Description:Receptacle, Male Pins Aluminum Alloy Panel Mount Solder Cup Silver Olive Drab Chromate over Cadmium Bulk N (Normal) Threaded

Case Package:SOT-23

Datasheet:97-3102A-14S-9P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Box, Chassis, Flanges, Panel
Mounting Type	Panel Mount
Package / Case	Metal
Mounting Feature	Flange
Shell Material	Aluminum Alloy
Insert Material	Diallyl Phthalate (DAP)
Body Material	Aluminium
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	97
Published	2004
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Solder Cup
Connector Type	Receptacle, Male Pins
Color	Olive Drab
Applications	Automotive, Industrial
Gender	Receptacle
Fastening Type	Threaded
Voltage - Rated DC	700V
Contact Finish - Mating	Silver
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	2
Orientation	N (Normal)
Shielding	Unshielded
Depth	30.15mm
Current Rating	13A
Military Standard	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Size - Insert	14S-9
Voltage - Rated AC	714mV
Approval Agency	CSA, UL
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	Male
Empty Shell	NO
Backshell Type	SOLID
Contact Style	Pin
Environmental Characteristics	ENVIRONMENT RESISTANT
Plating	Aluminium, Cadmium, Chromate
Number of Ports	1
Body Plating	Cadmium
Max Voltage Rating (DC)	700.5kV
Length	24.21mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant

97-3102A-14S-9P Product Details

97-3102A-14S-9P Overview

Packaging is Receptacle, Male Pins.Panel Mount is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the 97 Series, it can be found in this category.An enclosed device is enclosed in the packaging with the Metal.In this case, Box, Chassis, Flanges, Panel mounts the part.The device is operating at -55°C~125°C Operating Temperature.
