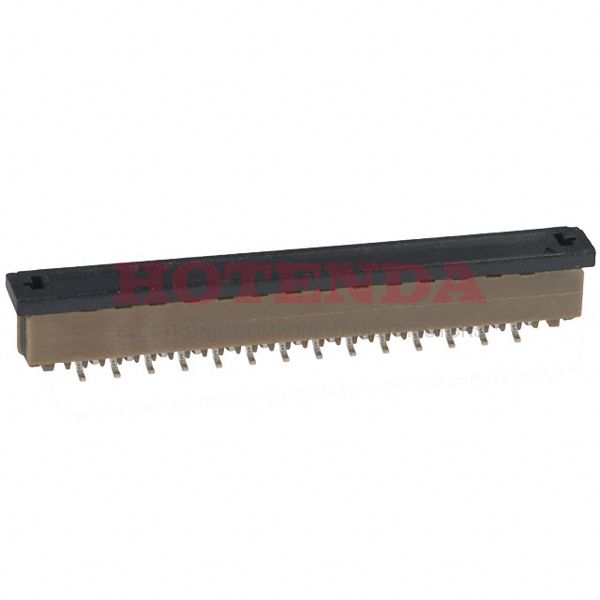

Name: SFW28S-2STE1LF
Brand: Amphenol ICC (FCI)
SKU: SFW28S-2STE1LF
Price: 0.77000 USD
Availability: InStock

new-10%

SFW28S-2STE1LF

Manufacturer part number:SFW28S-2STE1LF

Manufacturer:Amphenol ICC (FCI)

Description:SFW28S-2STE1LF datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:SFW28S-2STE1LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Thermoplastic, Glass Filled
Actuator Material	Thermoplastic, Glass Filled
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Published	2007
Series	SFW
JESD-609 Code	e3
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	28
Number of Rows	1
Additional Feature	TOP ENTRY, STAGGERED CONFIGURATION
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.039 1.00mm
Total Number of Contacts	28
Orientation	Straight
Depth	3.6mm
Current Rating	1A
Contact Finish	Tin
Voltage - Rated AC	100V
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Brown
Contact Resistance	30mOhm
Insulation Resistance	500MOhm
Max Voltage Rating (AC)	100V
Max Voltage Rating (DC)	100V
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Straight, Tapered
Locking Feature	Slide Lock
Actuator Color	Black
Contact Location	Bottom
Length	33.8mm
Width	3.6mm
Height Above Board	0.209 5.30mm
FFC, FCB Thickness	0.30mm 0.33mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

SFW28S-2STE1LF Product Details

SFW28S-2STE1LF Overview

The product comes in a package of FFC/FPC CONNECTOR.This device is mounted in the Surface Mount position.An orange Tape & Reel (TR) case is used to package the product.This product is in the SFW Series.Further, there are features such as TOP ENTRY, STAGGERED CONFIGURATION, to name only a few.It is more powerful in many ways due to its Zero Insertion Force (ZIF) feature.There is a mounting hole at Surface Mount.Running in -55°C~105°C Operating Temperature.
