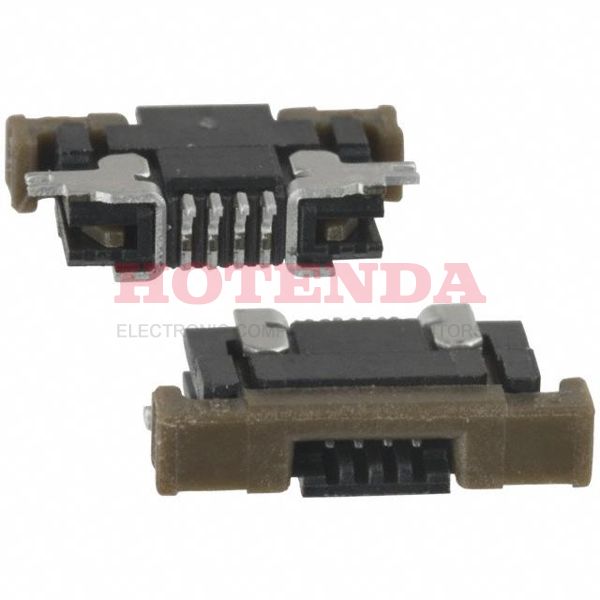

Name: SFV5R-1STE1LF
Brand: Amphenol ICC (FCI)
SKU: SFV5R-1STE1LF
Availability: InStock

new-10%

SFV5R-1STE1LF

Manufacturer part number:SFV5R-1STE1LF

Manufacturer:Amphenol ICC (FCI)

Description:SFV5R-1STE1LF datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:SFV5R-1STE1LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA), Nylon, Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Series	SFV-R
JESD-609 Code	e3
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	5
Number of Rows	1
Gender	Receptacle
Additional Feature	SIDE ENTRY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	5
Orientation	Right Angle
Depth	4.2mm
Current Rating	500mA
Contact Finish	Tin
UL Flammability Code	94V-0
Housing Color	Black
Contact Resistance	30mOhm
Insulation Resistance	100MOhm
Max Voltage Rating (AC)	50V
Wire/Cable Type	Straight
Max Voltage Rating (DC)	50V
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight, Tapered
Locking Feature	Slide Lock
Actuator Color	Brown
Contact Location	Bottom
Length	8mm
Width	4.9mm
Height Above Board	0.071 1.80mm
FFC, FCB Thickness	0.30mm 0.33mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

SFV5R-1STE1LF Product Details

SFV5R-1STE1LF Overview

A FFC/FPC CONNECTOR packaging is included.Surface Mount, Right Angle is the type of mounting for the device.Packaged in a Tape & Reel (TR) case.This product is in the SFV-R Series.As well as SIDE ENTRY, to name a few.A number of advantages are provided by its Solder Retention, Zero Insertion Force (ZIF) feature.Surface Mount is used to mount the part.There is no operating temperature for the device.
