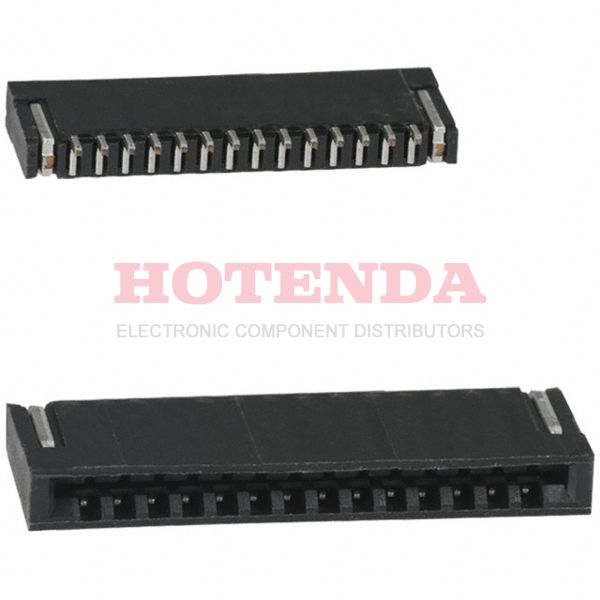

Name: HFW14R-2STE1
Brand: Amphenol ICC (FCI)
SKU: HFW14R-2STE1
Availability: InStock

new-10%

HFW14R-2STE1

Manufacturer part number:HFW14R-2STE1

Manufacturer:Amphenol ICC (FCI)

Description:HFW14R-2STE1 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:HFW14R-2STE1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Number of Pins	14
Housing Material	Polyamide (PA6T), Nylon 6T, Glass Filled
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Series	HFW-R
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	14
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Number of Rows	1
Voltage - Rated	100V
Current Rating (Amps)	1A
Pitch	0.039 1.00mm
Orientation	Right Angle
Depth	5.5mm
Current Rating	1A
Contact Finish	Tin Alloy
Number of Contacts	14
Housing Color	Black
Contact Resistance	30mOhm
Max Voltage Rating (AC)	100V
Wire/Cable Type	Straight
Mating Cycles	30
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight or Tapered
Length	16.6mm
Height Above Board	0.075 1.90mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0

HFW14R-2STE1 Product Details

HFW14R-2STE1 Overview

This device has a Surface Mount, Right Angle mounting type.The product is packaged in a Tape & Reel (TR) case.This is from the HFW-R Series.A device with a 14 pin configuration is equipped with the device.Whenever it's below 105°C, it's best to use it.-55°C is the minimum temperature for this device.By Surface Mount it's mounted.-55°C~105°C Operating Temperature is the default.
