Name: 91910-21109LF
Brand: Amphenol ICC (FCI)
SKU: 91910-21109LF
Price: 2.50000 USD
Availability: InStock

new-10%

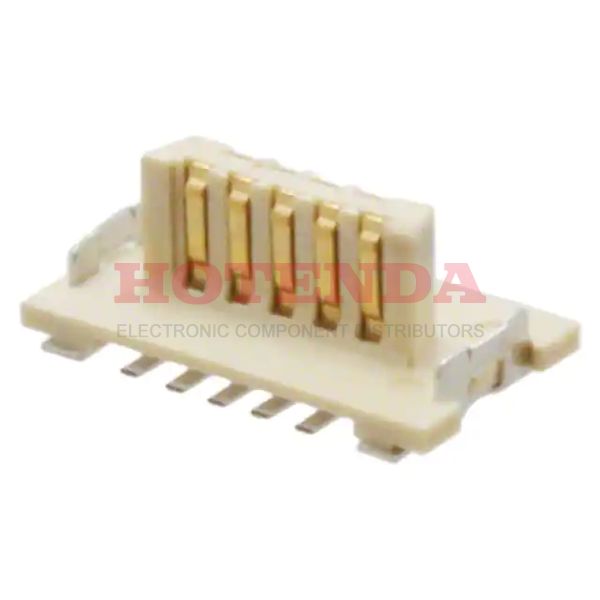

91910-21109LF

Manufacturer part number:91910-21109LF

Manufacturer:Amphenol ICC (FCI)

Description:Header, Center Strip Contacts Tube 2 Rows 0.039 1.00mm Surface Mount 9 Positions Conan™, MezzSelect™ Gold or Gold, GXT™ SMD/SMT Copper

Case Package:SOT-23

Datasheet:91910-21109LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Material	Liquid Crystal Polymer
Housing Material	Polymer
Packaging	Tube
Published	2008
Series	Conan™, MezzSelect™
Feature	Board Guide, Solder Retention
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
Connector Type	Header, Center Strip Contacts
Number of Positions	9
Max Operating Temperature	130°C
Min Operating Temperature	-55°C
Color	Cream
Number of Rows	2
Gender	Male
Voltage - Rated	500V
Pitch	0.039 1.00mm
Orientation	Straight
Depth	5.59mm
Current Rating	1A
Contact Finish	Gold or Gold, GXT™
Lead Pitch	1mm
Number of Contacts	9
Housing Color	Natural
Contact Resistance	30mOhm
Insulation Resistance	1GOhm
Row Spacing	2.59 mm
Length	9.3mm
Width	5mm
Contact Finish Thickness	15.0μin 0.38μm
Height Above Board	0.034 0.86mm
Stack Height (Mating)	4.15mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

91910-21109LF Product Details

91910-21109LF Overview

It comes in Header, Center Strip Contacts packaging.In order to package the product, a Tube case is used.The device's mounting type is Surface Mount.It belongs to the Conan™, MezzSelect™ Series of products.When operating, it is possible to ensure that Board Guide, Solder Retention is maintained.It is necessary to use a Surface Mount socket in order to mount this part.It's best to use it when the temperature is below 130°C.This device must operate at a minimum temperature of -55°C.
