86093967194755E1LF datasheet pdf and Backplane Connectors - DIN 41612 product details from Amphenol ICC (FCI) stock available on our website
SOT-23
86093967194755E1LF Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
8 Weeks
Contact Plating
Gold
Mount
Through Hole
Mounting Type
Through Hole, Right Angle
Housing Material
Thermoplastic
Material - Insulation
Polyester Thermoplastic
Operating Temperature
-55°C~125°C
Packaging
Tray
Series
8609
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Press-Fit
Connector Type
Header, Male Pins
Number of Positions
96
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Rows
3
Gender
Male
Voltage - Rated
1kV
Current Rating (Amps)
1.5A
Pitch
0.100 2.54mm
Orientation
Right Angle
Depth
19.5mm
Style
C
Number of Positions Loaded
All
Current Rating
1.5A
Contact Finish
Gold
Number of Contacts
96
Housing Color
Grey
Contact Resistance
20mOhm
Insulation Resistance
1 TΩ
Max Voltage Rating (AC)
1kV
Level, Class
2
Length
94mm
Length - Tail
2.8mm
Material Flammability Rating
UL94 V-0
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
RoHS Compliant
Flammability Rating
UL94 V-0
Lead Free
Lead Free
In-Stock:976 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$6.393835
$6.393835
10
$6.031920
$60.3192
100
$5.690491
$569.0491
500
$5.368387
$2684.1935
1000
$5.064516
$5064.516
86093967194755E1LF Product Details

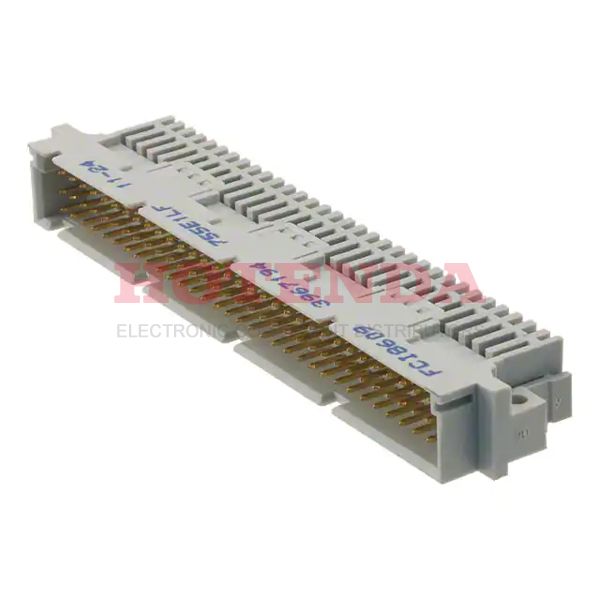

Description: The ICC Backplane Connectors - DIN 41612 86093967194755E1LF is a 96-position DIN press-fit header connector. It is designed to provide a reliable connection between two printed circuit boards (PCBs) in a backplane system. It features a robust construction with a high-temperature plastic housing and gold-plated contacts for reliable signal transmission. The connector is designed to be used in a variety of applications, including industrial, automotive, and medical.
Features: - 96-position DIN press-fit header connector - Robust construction with high-temperature plastic housing - Gold-plated contacts for reliable signal transmission - Designed for use in a variety of applications - Compatible with standard DIN 41612 backplane systems
Applications: The ICC Backplane Connectors - DIN 41612 86093967194755E1LF is designed for use in a variety of applications, including industrial, automotive, and medical. It is suitable for use in backplane systems, providing reliable signal transmission between two PCBs. It is also compatible with standard DIN 41612 backplane systems.
