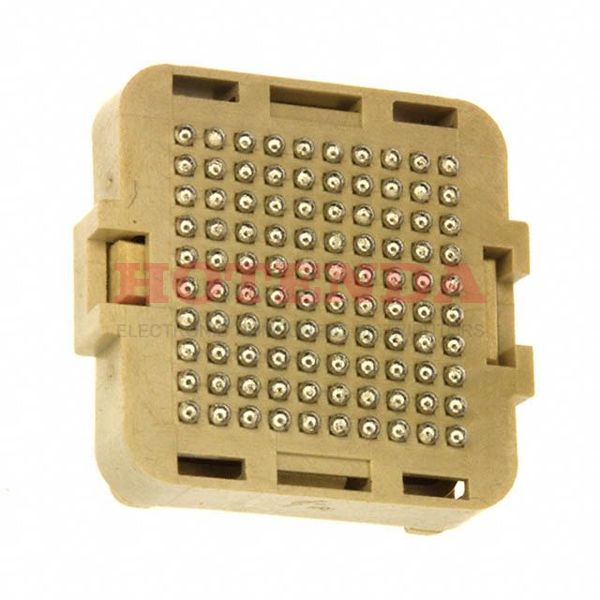

Name: 84512-102LF
Brand: Amphenol ICC (FCI)
SKU: 84512-102LF
Price: 22.03000 USD
Availability: InStock

new

84512-102LF

Manufacturer part number:84512-102LF

Manufacturer:Amphenol ICC (FCI)

Description:84512-102LF datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:84512-102LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	BGA
Insulation Material	Polyester
Material	Liquid Crystal Polymer
Housing Material	Polymer
Packaging	Tape & Reel (TR)
Published	2006
Series	MEG-Array®, MezzSelect™
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Array, Male Pins
Number of Positions	100
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Number of Rows	10
Gender	Male
Voltage - Rated	200V
Pitch	0.050 1.27mm
Orientation	Straight
Depth	17.34mm
Current Rating	450mA
Contact Finish	Gold
Voltage - Rated AC	200V
Lead Pitch	1.27mm
Number of Contacts	100
Contact Resistance	25mOhm
Insulation Resistance	1GOhm
Row Spacing	1.27 mm
Max Voltage Rating (AC)	200V
Max Current Rating	450mA
Length	18.7mm
Width	17.34mm
Contact Finish Thickness	30.0μin 0.76μm
Height Above Board	0.132 3.35mm
Stack Height (Mating)	4mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

84512-102LF Product Details

84512-102LF Overview

Packaging for this item is Array, Male Pins.Packaging is performed using a Tape & Reel (TR) case.This device has a mounting type of Surface Mount.This product is part of the MEG-Array?, MezzSelect? Series.For mounting, you'll need a Surface Mount socket.You should use it when it's below 85°C.A minimum operating temperature of -40°C is required for this device.Packages with the BGA contain a device.
