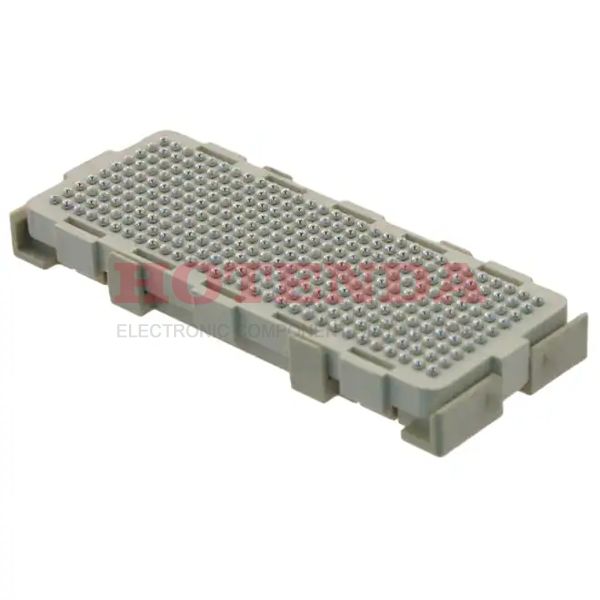

Name: 84501-101LF
Brand: Amphenol ICC (FCI)
SKU: 84501-101LF
Price: 34.68000 USD
Availability: InStock

new

84501-101LF

Manufacturer part number:84501-101LF

Manufacturer:Amphenol ICC (FCI)

Description:84501-101LF datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:84501-101LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	BGA
Insulation Material	Polyester
Material	Liquid Crystal Polymer
Housing Material	Polymer
Packaging	Tape & Reel (TR)
Series	MEG-Array®, MezzSelect™
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Array, Female Sockets
Number of Positions	300
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Number of Rows	10
Gender	Receptacle
Voltage - Rated	200V
Pitch	0.050 1.27mm
Orientation	Straight
Depth	16.38mm
Current Rating	450mA
Contact Finish	Gold
Voltage - Rated AC	200V
Lead Pitch	1.27mm
Number of Contacts	300
Contact Resistance	35mOhm
Insulation Resistance	1GOhm
Row Spacing	1.27 mm
Max Voltage Rating (AC)	200V
Max Current Rating	450mA
Length	42.3mm
Width	17.34mm
Contact Finish Thickness	30.0μin 0.76μm
Height Above Board	0.132 3.35mm
Stack Height (Mating)	4mm 10mm
Stack Height	4mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

84501-101LF Product Details

84501-101LF Overview

Packaging is in the form of Array, Female Sockets.Packaged in a Tape & Reel (TR) case.There is a mounting type of Surface Mount for this device.MEG-Array?, MezzSelect? Series product.For mounting, you need a Surface Mount socket.You should use it when it's below 85°C.A minimum temperature of -40°C is required for the operation of this device.Packages with the BGA contain a device.
