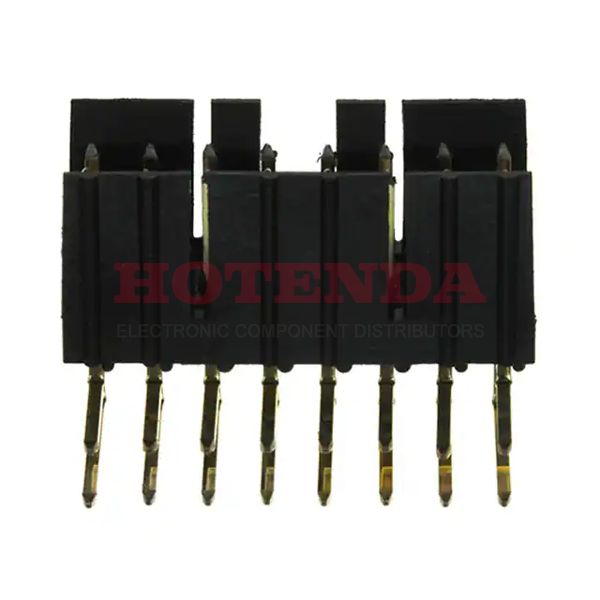

Name: 78207-116HLF
Brand: Amphenol ICC (FCI)
SKU: 78207-116HLF
Price: 2.73000 USD
Availability: InStock

new-10%

78207-116HLF

Manufacturer part number:78207-116HLF

Manufacturer:Amphenol ICC (FCI)

Description:Mini-PV™, Basics+ Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole, Right Angle Gold or Gold, GXT™ 16-Position Board to Cable/Wire 0.303 7.70mm Height

Case Package:SOT-23

Datasheet:78207-116HLF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Housing Material	Thermoplastic
Packaging	Bulk
Series	Mini-PV™, Basics+
Published	2012
Feature	Keying Slot
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	16
Max Operating Temperature	95°C
Min Operating Temperature	-40°C
Color	Black
Number of Rows	2
Gender	Male
Voltage - Rated	1kV
Fastening Type	Friction Lock
Contact Finish - Mating	Gold or Gold, GXT™
Contact Type	Male Pin
Pitch	2.54mm
Orientation	Right Angle
Depth	13.97mm
Insulation Height	0.303 7.70mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.120 3.05mm
Shrouding	Shrouded - 2 Wall
Lead Pitch	2.54mm
Number of Contacts	16
Contact Length - Mating	0.230 5.84mm
Housing Color	Black
Lead Length	3.05mm
Max Voltage Rating (AC)	1kV
Mating Post Length	5.84mm
Length	20.32mm
Width	9.8mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

78207-116HLF Product Details

78207-116HLF Overview

The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number Mini-PV™, Basics+ belongs to the Mini-PV™, Basics+ Series.Whenever the temperature is below 95°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In many ways, it is more powerful due to its Keying Slot feature.There is a Through Hole mount on the part.
