Name: 77317-403-48LF
Brand: Amphenol ICC (FCI)
SKU: 77317-403-48LF
Price: 2.46000 USD
Availability: InStock

new-10%

77317-403-48LF

Manufacturer part number:77317-403-48LF

Manufacturer:Amphenol ICC (FCI)

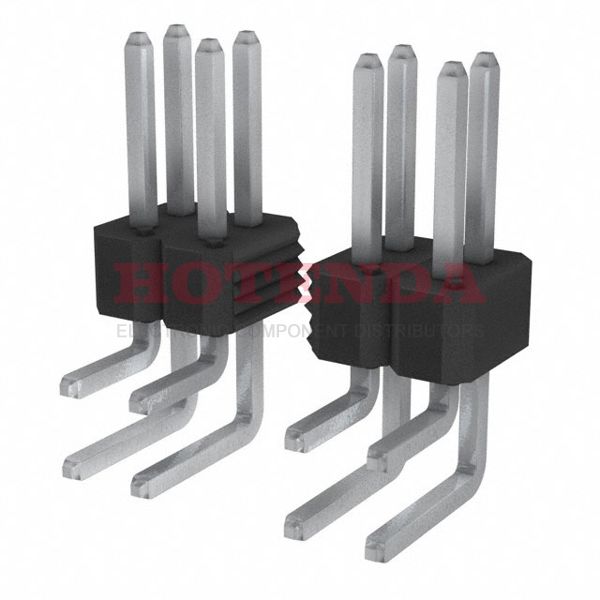

Description:BERGSTIK® Series 2-Row Header, Breakaway Solder Phosphor Bronze Bulk Through Hole, Right Angle Tin Thermoplastic 48-Position Board to Board 0.190 4.83mm Height

Case Package:SOT-23

Datasheet:77317-403-48LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Lead, Tin
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Thermoplastic
Housing Material	Thermoplastic
Packaging	Bulk
Series	BERGSTIK®
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	48
Max Operating Temperature	125°C
Min Operating Temperature	-65°C
Color	Black
Number of Rows	2
Voltage - Rated	1.5kV
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Type	Male Pin
Pitch	2.54mm
Orientation	Right Angle
Depth	12.42mm
Insulation Height	0.190 4.83mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.100 2.54mm
Shrouding	Unshrouded
Number of Contacts	48
Contact Finish - Post	Tin
Contact Length - Mating	0.230 5.84mm
Contact Gender	Male
Housing Color	Black
Insulation Resistance	5GOhm
Max Voltage Rating (AC)	1.5kV
Length	60.96mm
Contact Finish Thickness - Mating	78.7μin 2.00μm
Contact Finish Thickness - Post	78.7μin 2.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

77317-403-48LF Product Details

77317-403-48LF Overview

You get it in Header, Breakaway packaging.Mounting type Through Hole, Right Angle is selected for the device.Packaged in a Bulk case.A member of the BERGSTIK® Series.Using it at a temperature below 125°C is ideal.A minimum temperature of -65°C is needed for this device.There's a Through Hole mount on the part.
