Name: 68021-118HLF
Brand: Amphenol ICC (FCI)
SKU: 68021-118HLF
Price: 1.45000 USD
Availability: InStock

new-10%

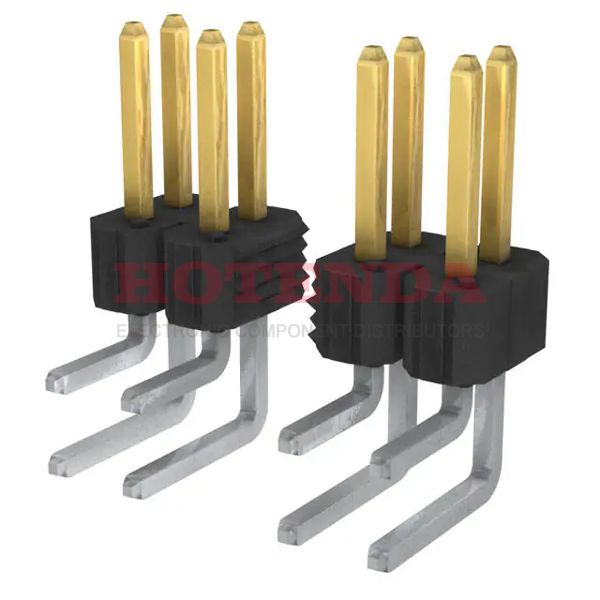

68021-118HLF

Manufacturer part number:68021-118HLF

Manufacturer:Amphenol ICC (FCI)

Description:BERGSTIK® II Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole, Right Angle Gold or Gold, GXT™ 18-Position Board to Board 0.190 4.83mm Height

Case Package:SOT-23

Datasheet:68021-118HLF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Phosphor Bronze
Contact Plating	GXT, Gold
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Housing Material	Thermoplastic
Operating Temperature	-65°C~125°C
Packaging	Bulk
Series	BERGSTIK® II
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	18
Max Operating Temperature	125°C
Min Operating Temperature	-65°C
Color	Black
Number of Rows	2
Gender	Male
Voltage - Rated	1.5kV
Fastening Type	Push-Pull
Contact Finish - Mating	Gold or Gold, GXT™
Contact Type	Male Pin
Current Rating (Amps)	3A per Contact
Pitch	2.54mm
Orientation	Right Angle
Depth	12.44mm
Insulation Height	0.190 4.83mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.120 3.05mm
Shrouding	Unshrouded
Number of Contacts	18
Contact Length - Mating	0.230 5.84mm
Contact Gender	Male
Housing Color	Black
Lead Length	3.05mm
Insulation Resistance	5GOhm
Max Voltage Rating (AC)	1.5kV
Mating Post Length	5.84mm
Length	22.86mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

68021-118HLF Product Details

68021-118HLF Overview

The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number BERGSTIK® II belongs to the BERGSTIK® II Series.Whenever the temperature is below 125°C, it's best.There is a minimum temperature requirement of [0°C] for this device.There is a Through Hole mount on the part.This device operates at a temperature of -65°C~125°C.
