Name: 20021121-00008C4LF
Brand: Amphenol ICC (FCI)
SKU: 20021121-00008C4LF
Price: 0.79000 USD
Availability: InStock

new-10%

20021121-00008C4LF

Manufacturer part number:20021121-00008C4LF

Manufacturer:Amphenol ICC (FCI)

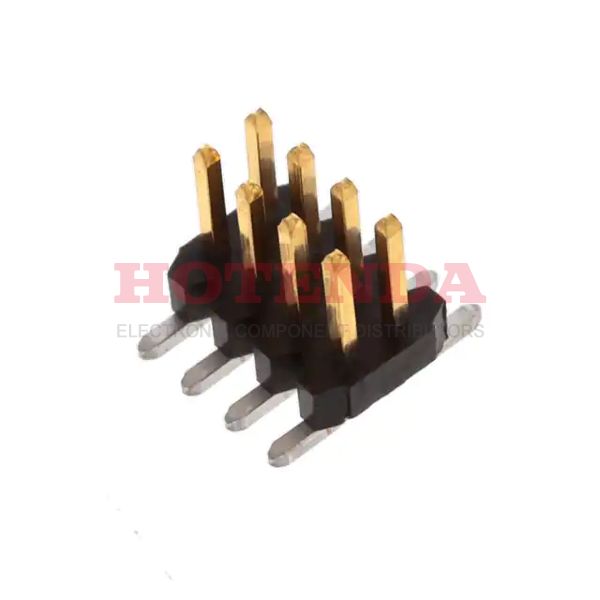

Description:Minitek127® 1.27mm Series 2-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Gold Thermoplastic 8-Position Board to Board

Case Package:SOT-23

Datasheet:20021121-00008C4LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Number of Pins	8
Contact Shape	Square
Insulation Material	Thermoplastic
Housing Material	Thermoplastic
Packaging	Tape & Reel (TR)
Series	Minitek127® 1.27mm
Feature	Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	8
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Color	Black
Number of Rows	2
Gender	Male
Voltage - Rated	125V
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Pin
Pitch	1.27mm
Orientation	Straight
Depth	3.4mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	1A
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Shrouding	Unshrouded
Number of Contacts	8
Contact Finish - Post	Tin
Contact Length - Mating	0.120 3.05mm
Housing Color	Black
Contact Resistance	30mOhm
Max Voltage Rating (AC)	125V
Mating Post Length	3.05mm
Length	5.08mm
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	50.0μin 1.27μm
Stack Height	3mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant

20021121-00008C4LF Product Details

20021121-00008C4LF Overview

The product is packaged in Header.This device is mounted in the Surface Mount position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the Minitek127® 1.27mm Series.A total of 8 pins are available on the device.When the temperature is below 85°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.There are a number of advantages to its Pick and Place feature.Part Surface Mount is mounted to the part.
