Name: MS3470W14-12PX
Brand: Amphenol Aerospace Operations
SKU: MS3470W14-12PX
Price: 47.05000 USD
Availability: InStock

new

MS3470W14-12PX

Manufacturer part number:MS3470W14-12PX

Manufacturer:Amphenol Aerospace Operations

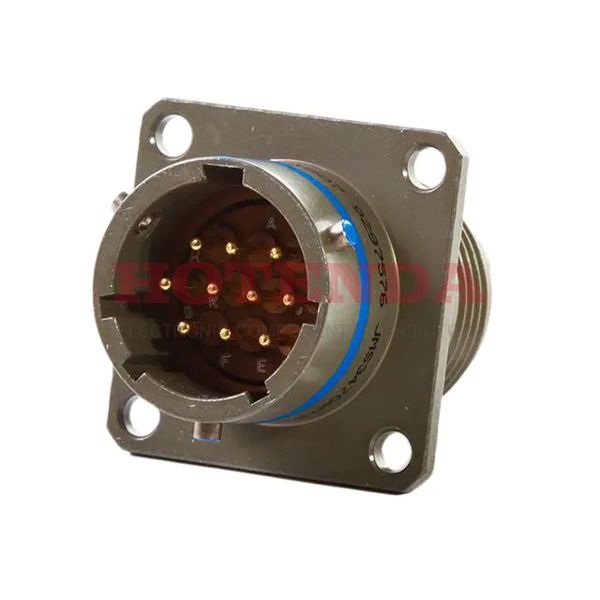

Description:Receptacle, Male Pins Aluminum Panel Mount 12 (Power) Positions Crimp Gold Olive Drab Cadmium Bulk X Bayonet Lock

Case Package:SOT-23

Datasheet:MS3470W14-12PX Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Flanges, Panel, Wall
Mounting Type	Panel Mount
Mounting Feature	Flange
Number of Pins	16
Shell Material	Aluminum
Operating Temperature	-65°C~200°C
Packaging	Bulk
Series	Military, MIL-DTL-26482 Series II
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
ECCN Code	EAR99
Connector Type	Receptacle, Male Pins
Number of Positions	12 (Power)
Color	Olive Drab
Applications	Aviation, Industrial, Military
Additional Feature	STANDARD: MIL-C-26482, POLARIZED, COMPATIBLE CONTACTS: M39029/4-110; M39029/4-111
HTS Code	8536.69.40.20
Fastening Type	Bayonet Lock
Contact Finish - Mating	Gold
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	X
Shielding	Unshielded
Ingress Protection	Environment Resistant
Depth	28.98mm
Current Rating	13A
Military Standard	MIL-DTL-26482
Shell Finish	Olive Drab Cadmium
Shell Size - Insert	14-12
Number of Contacts	12
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	Male
Empty Shell	NO
Backshell Type	SOLID
Environmental Characteristics	ENVIRONMENT/FLUID RESISTANT
Plating	Cadmium
Length	35.68mm
Contact Finish Thickness - Mating	50.0μin 1.27μm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Ratings	Environment Resistant, IP67

MS3470W14-12PX Product Details

MS3470W14-12PX Overview
