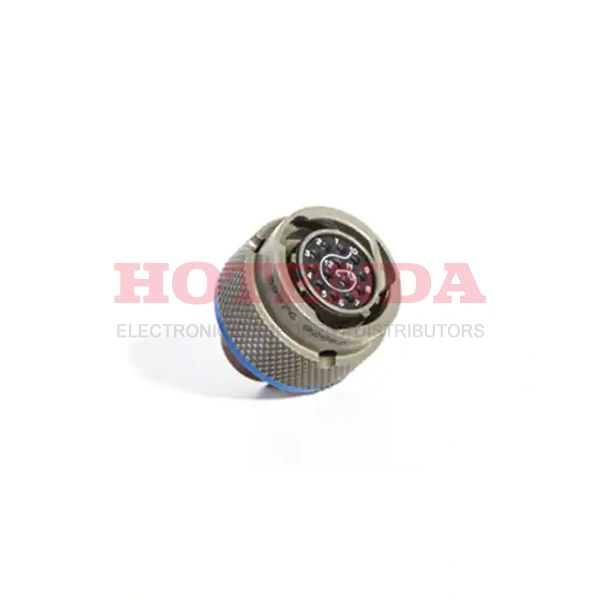

Name: MS27513E22B35P
Brand: Amphenol Aerospace Operations
SKU: MS27513E22B35P
Price: 111.11000 USD
Availability: InStock

new

MS27513E22B35P

Manufacturer part number:MS27513E22B35P

Manufacturer:Amphenol Aerospace Operations

Description:Receptacle, Male Pins Aluminum Panel Mount 100 Positions Crimp Gold Olive Drab Cadmium over Nickel Bulk N (Normal) Bayonet Lock

Case Package:SOT-23

Datasheet:MS27513E22B35P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Box, Flanges, Panel
Mounting Type	Panel Mount
Mounting Feature	Flange
Shell Material	Aluminum
Operating Temperature	-65°C~200°C
Packaging	Bulk
Series	Military, MIL-DTL-38999 Series II, JT
Published	2006
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
Connector Type	Receptacle, Male Pins
Number of Positions	100
Max Operating Temperature	200°C
Min Operating Temperature	-65°C
Color	Olive Drab
Applications	Aviation, Military
Gender	Female
Fastening Type	Bayonet Lock
Contact Finish - Mating	Gold
Orientation	N (Normal)
Shielding	Unshielded
Ingress Protection	Environment Resistant
Depth	39.67mm
Current Rating	5A
Shell Finish	Olive Drab Cadmium over Nickel
Shell Size - Insert	22-35
Number of Contacts	100
Contact Style	Pin
Plating	Cadmium
Length	22.76mm
Contact Finish Thickness - Mating	50.0μin 1.27μm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Ratings	Environment Resistant

MS27513E22B35P Product Details

MS27513E22B35P Overview

It comes in Receptacle, Male Pins packaging.The device's mounting type is Panel Mount.In order to package the product, a Bulk case is used.It belongs to the Military, MIL-DTL-38999 Series II, JT Series of products.It's best to use it when the temperature is below 200°C.This device must operate at a minimum temperature of -65°C.The part is mounted by Box, Flanges, Panel.The device runs in -65°C~200°C Operating Temperature.
