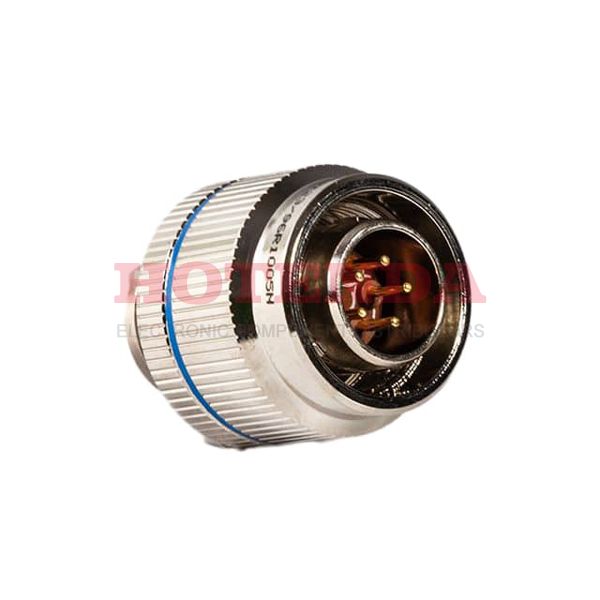

Name: M83723/82R2255N
Brand: Amphenol Aerospace Operations
SKU: M83723/82R2255N
Price: 66.77000 USD
Availability: InStock

new

M83723/82R2255N

Manufacturer part number:M83723/82R2255N

Manufacturer:Amphenol Aerospace Operations

Description:Receptacle, Female Sockets Aluminum Panel Mount 55 (Power) Positions Crimp Gold Electroless Nickel Bulk N (Normal) Threaded

Case Package:SOT-23

Datasheet:M83723/82R2255N Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Flanges, Panel, Wall
Mounting Type	Panel Mount
Mounting Feature	Flange
Shell Material	Aluminum
Operating Temperature	-65°C~200°C
Packaging	Bulk
Series	Military, MIL-DTL-83723 Series III
Published	2006
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
Connector Type	Receptacle, Female Sockets
Number of Positions	55 (Power)
Color	Silver
Applications	Automotive, Military
Gender	Female
Additional Feature	STANDARD: MIL-C-83723, COMPATIBLE CONTACT: M39029/5-115
Fastening Type	Threaded
Contact Finish - Mating	Gold
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	N (Normal)
Shielding	Unshielded
Ingress Protection	Environment Resistant
Current Rating	7.5A
Shell Finish	Electroless Nickel
Shell Size - Insert	22-55
Number of Contacts	55
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Empty Shell	NO
Backshell Type	SOLID
Contact Finish Thickness - Mating	50.0μin 1.27μm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Ratings	Environment Resistant

M83723/82R2255N Product Details

M83723/82R2255N Overview

The product comes in a package of Receptacle, Female Sockets.Panel Mount is the mount type.Bulk cases are used to package the product.This product is in the Military, MIL-DTL-83723 Series III Series.Also, there's STANDARD: MIL-C-83723, COMPATIBLE CONTACT: M39029/5-115, to name a few.There's a Flanges, Panel, Wall on the part.Operating temperature is -65°C~200°C.
