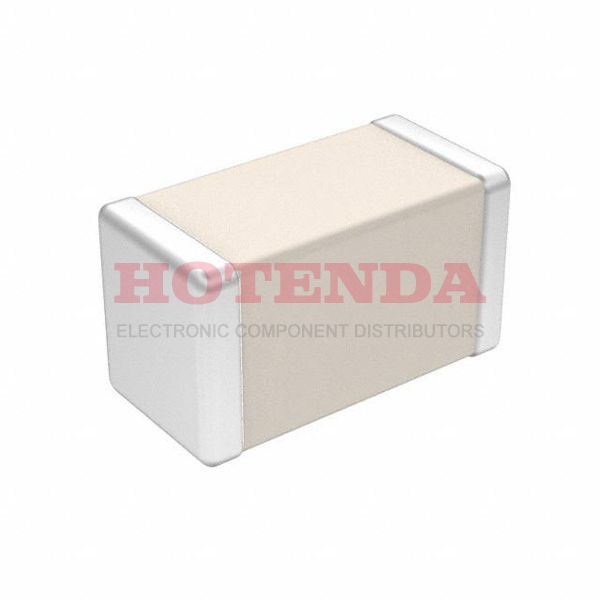

Name: 600S820JT250XT
Brand: American Technical Ceramics
SKU: 600S820JT250XT
Price: 0.82000 USD
Availability: InStock

new-10%

600S820JT250XT

Manufacturer part number:600S820JT250XT

Manufacturer:American Technical Ceramics

Description:600S820JT250XT datasheet pdf and Ceramic Capacitors product details from American Technical Ceramics stock available on our website

Case Package:SOT-23

Datasheet:600S820JT250XT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0603 (1608 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	ATC 600S
Size / Dimension	0.063Lx0.032W 1.60mmx0.81mm
Tolerance	±5%
JESD-609 Code	e3
Feature	High Q, Low Loss, Ultra Low ESR
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Tin (Sn) - with Nickel (Ni) barrier
Applications	RF, Microwave, High Frequency, Bypass, Decoupling
Additional Feature	MIL-PRF-55681, MIL-PRF-123
HTS Code	8532.23.00.20
Capacitance	82pF
Voltage - Rated DC	250V
Packing Method	TR, 7 Inch
Case Code (Metric)	1608
Case Code (Imperial)	0603
Capacitor Type	CERAMIC CAPACITOR
Dielectric	C0G
Temperature Characteristics Code	C0G
Multilayer	Yes
Height	890μm
Length	1.6mm
Width	0.81mm
Thickness (Max)	0.035 0.89mm
Thickness	889μm
RoHS Status	RoHS Compliant

600S820JT250XT Product Details

600S820JT250XT Overview

Consequently, the program has size/dimension 0.063Lx0.032W 1.60mmx0.81mm.In addition, this ceramic capacitor features a MIL-PRF-55681, MIL-PRF-123.Its coefficient is C0G NP0 and determines the change in resistance per degree of temperature for a substance.The unit can operate at 250V Volts DC - Rated DC.
