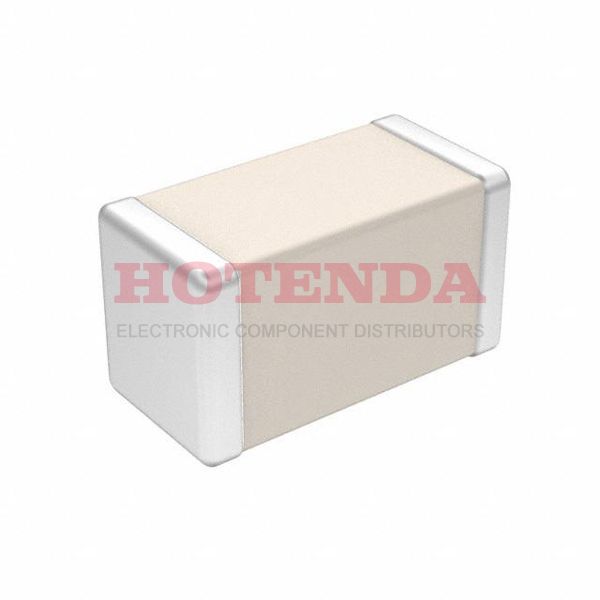

Name: 600S3R0AW250XT
Brand: American Technical Ceramics
SKU: 600S3R0AW250XT
Price: 1.95000 USD
Availability: InStock

new-10%

600S3R0AW250XT

Manufacturer part number:600S3R0AW250XT

Manufacturer:American Technical Ceramics

Description:600S3R0AW250XT datasheet pdf and Ceramic Capacitors product details from American Technical Ceramics stock available on our website

Case Package:SOT-23

Datasheet:600S3R0AW250XT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0603 (1608 Metric)
Terminal Shape	WRAPAROUND
Dielectric Material	CERAMIC
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	ATC 600S
Size / Dimension	0.063Lx0.032W 1.60mmx0.81mm
Tolerance	±0.05pF
JESD-609 Code	e0
Feature	High Q, Low Loss, Ultra Low ESR
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Applications	RF, Microwave, High Frequency, Bypass, Decoupling
Voltage - Rated	250V
Additional Feature	MIL-PRF-55681, MIL-PRF-123
HTS Code	8532.23.00.20
Capacitance	3pF
Packing Method	TR, 7 Inch
Reach Compliance Code	not_compliant
Case Code (Metric)	1608
Case Code (Imperial)	0603
Capacitor Type	CERAMIC CAPACITOR
Temperature Characteristics Code	C0G
Multilayer	Yes
Rated (DC) Voltage (URdc)	250V
Height	0.89mm
Length	1.6mm
Width	0.81mm
Thickness (Max)	0.035 0.89mm
Thickness	889μm
RoHS Status	Non-RoHS Compliant

600S3R0AW250XT Product Details

600S3R0AW250XT Overview

For this device, the size/dimension of the program is 0.063Lx0.032W 1.60mmx0.81mm.In addition, this ceramic capacitor features a MIL-PRF-55681, MIL-PRF-123.In general, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance per degree of temperature change.
