Name: 600L6R8BT200T
Brand: American Technical Ceramics
SKU: 600L6R8BT200T
Price: 1.34000 USD
Availability: InStock

new-10%

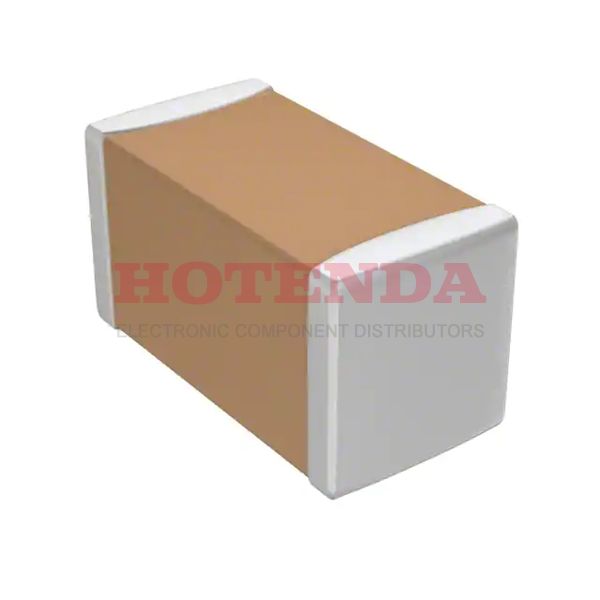

600L6R8BT200T

Manufacturer part number:600L6R8BT200T

Manufacturer:American Technical Ceramics

Description:600L6R8BT200T datasheet pdf and Ceramic Capacitors product details from American Technical Ceramics stock available on our website

Case Package:SOT-23

Datasheet:600L6R8BT200T Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	ATC 600L
Size / Dimension	0.040Lx0.020W 1.02mmx0.51mm
Tolerance	±0.1pF
JESD-609 Code	e3
Feature	High Q, Low Loss, Ultra Low ESR
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Tin (Sn) - with Nickel (Ni) barrier
Applications	RF, Microwave, High Frequency, Bypass, Decoupling
Voltage - Rated	200V
Additional Feature	MIL-PRF-55681, MIL-PRF-123
HTS Code	8532.24.00.20
Capacitance	6.8pF
Packing Method	TR, 7 Inch
Depth	510μm
Case Code (Metric)	1005
Case Code (Imperial)	0402
Capacitor Type	CERAMIC CAPACITOR
Dielectric	C0G
Temperature Characteristics Code	C0G
Multilayer	Yes
Rated (DC) Voltage (URdc)	200V
Height	0.6mm
Length	1.02mm
Width	0.51mm
Thickness (Max)	0.024 0.60mm
Thickness	609.6μm
Radiation Hardening	No
RoHS Status	RoHS Compliant

600L6R8BT200T Product Details

600L6R8BT200T Overview

For this device, the size/dimension of the program is 0.040Lx0.020W 1.02mmx0.51mm.Ceramic capacitor also has a MIL-PRF-55681, MIL-PRF-123 characteristic.Generally, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance with respect to temperature changes, and it is equal to C0G NP0.
