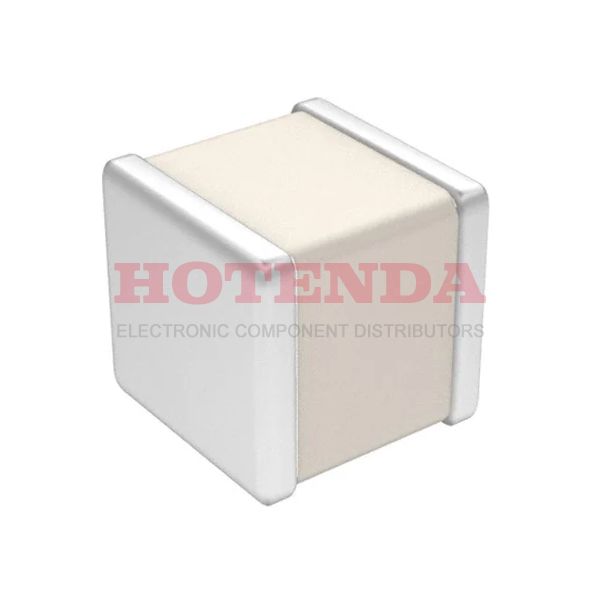

Name: 100A1R9BT150XT
Brand: American Technical Ceramics
SKU: 100A1R9BT150XT
Price: 4.31000 USD
Availability: InStock

new-10%

100A1R9BT150XT

Manufacturer part number:100A1R9BT150XT

Manufacturer:American Technical Ceramics

Description:100A1R9BT150XT datasheet pdf and Ceramic Capacitors product details from American Technical Ceramics stock available on our website

Case Package:SOT-23

Datasheet:100A1R9BT150XT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mounting Type	Surface Mount, MLCC
Package / Case	0505 (1313 Metric)
Surface Mount	YES
Terminal Shape	WRAPAROUND
Dielectric Material	CERAMIC
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	Porcelain Superchip® ATC 100A
Size / Dimension	0.055Lx0.055W 1.40mmx1.40mm
Tolerance	±0.1pF
JESD-609 Code	e3
Feature	High Q, Low Loss, Low ESL
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	P90
Terminal Finish	Tin (Sn) - with Nickel (Ni) barrier
Applications	RF, Microwave, High Frequency, Bypass, Decoupling
Additional Feature	STANDARDS: MIL-PRF-123, MIL-PRF-55681
HTS Code	8532.24.00.20
Capacitance	1.9pF
Voltage - Rated DC	150V
Packing Method	TR
Reference Standard	MIL-PRF-55681
Case Code (Metric)	1414
Case Code (Imperial)	0505
Capacitor Type	CERAMIC CAPACITOR
Multilayer	Yes
Size Code	0606
Height	1.45mm
Length	1.4mm
Width	1.4mm
Thickness (Max)	0.057 1.45mm
RoHS Status	RoHS Compliant

100A1R9BT150XT Product Details

100A1R9BT150XT Overview

Using this device, the program has a size/dimension of 0.055Lx0.055W 1.40mmx1.40mm.A STANDARDS: MIL-PRF-123, MIL-PRF-55681 is also present on this ceramic capacitor.Temperature coefficient of resistance consists of the change in electrical resistance of a substance with respect to each degree change in temperature, and it is P90.The voltage - Rated DC of 150V allows it to function.
