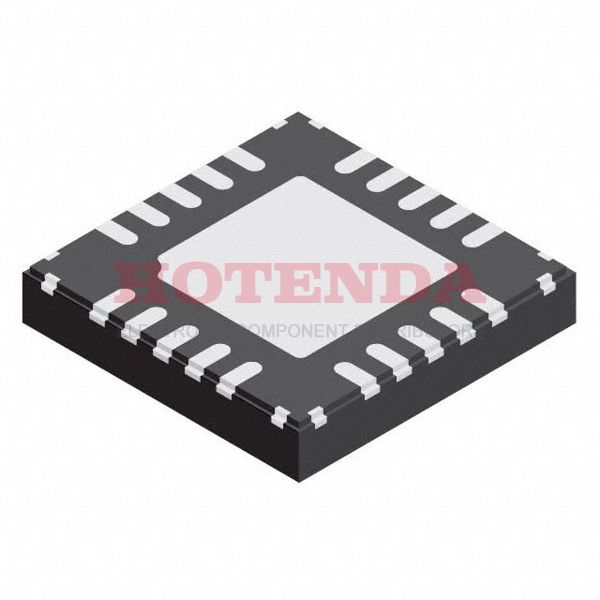

Name: A4490EES-T
Brand: Allegro MicroSystems
SKU: A4490EES-T
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-WFQFN Exposed Pad
Number of Pins	20
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Published	2008
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Frequency	550kHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	A4490
Function	Step-Down
Number of Outputs	3
Voltage - Input (Max)	34V
Output Voltage	5V
Output Type	Adjustable
Voltage - Output 1	5V
Voltage - Input (Min)	4.5V
Input Voltage-Nom	6V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Output Current	1.5A
Max Output Voltage	30.6V
Voltage - Output 2	5V
Voltage - Output (Min/Fixed)	0.8V
Topology	Buck
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Current - Output 1	1.5A
Synchronous Rectifier	No
Min Output Voltage	800mV
Voltage - Output (Max)	30.6V
Current - Output 2	1.5A
Height Seated (Max)	0.8mm
Length	4mm
Width	4mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

A4490EES-T Product Details

A4490EES-T Overview

This harley voltage regulator utilizes the Tube package for optimized performance. As you can see, this harley voltage regulator contains 20 terminations. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. The space-saving 20-WFQFN Exposed Pad package is available for this voltage regulator. In this case, DC DC switching regulator has 3 outputs configured to it. As you can see, this DC DC switching regulator generates Adjustable output on its output pins. Switching regulators like this one can be mounted on the Surface Mount mounting system. -40°C~85°C TA should be the operating temperature when voltage regulator is operating. The voltage regulator can operate with a dc to dc voltage regulator's minimum input voltage of 4.5V. The output voltage (Min/Fixed) of this voltage regulator 12v is 0.8V. There is a maximum input voltage of 34V for this voltage regulator 12v. With its peak reflow temperature of 260, this voltage regulator is essentially indestructible. The voltage regulator 12v is designed to provide a nominal input voltage of 6V for operation. This DC/DC regulator belongs to the A4490 family. The voltage DC DC switching regulator can provide is up to 5V volts. The switching regulator operation is carried out by 20 pins. This voltage regulator 12v should be configured with an output voltage that is at least 800mV. 30.6V's maximal output voltage allows adjusting voltage regulator to operate easily. As a result, it is able to provide adjusting voltage regulator a maximum output voltage of 30.6V. At a frequency of 550kHz, dc to dc voltage regulator is capable of maintaining high accuracy. Normally, 1.5A is the output current of adjusting voltage regulator.
