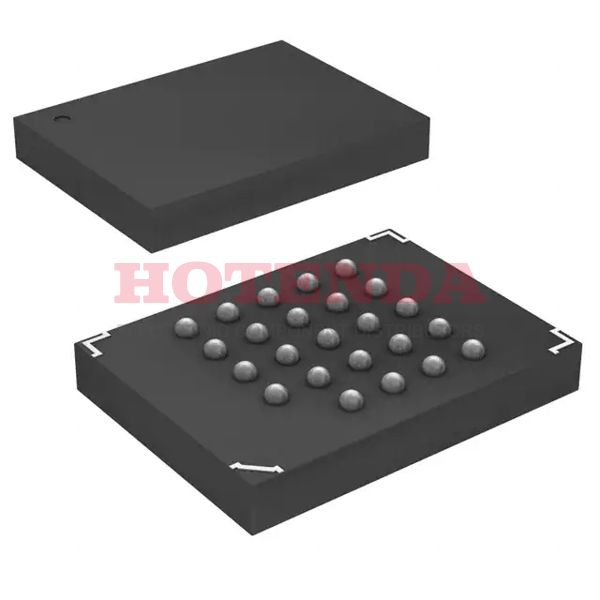

Name: AT45DB642D-CU
Brand: Adesto Technologies
SKU: AT45DB642D-CU
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	24-LBGA, CSPBGA
Number of Pins	24
Operating Temperature	-40°C~85°C TC
Packaging	Tray
Published	1997
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	24
ECCN Code	3A991.B.1.A
Terminal Finish	MATTE TIN
Additional Feature	ORGANIZED AS 8192 PAGES OF 1056 BYTES EACH
HTS Code	8542.32.00.51
Technology	CMOS
Voltage - Supply	2.7V~3.6V
Terminal Position	BOTTOM
Number of Functions	1
Supply Voltage	3V
Terminal Pitch	1mm
Pin Count	24
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	2.7V
Interface	Parallel, SPI, Serial
Memory Size	64Mb 1056Bytes x 8192 pages
Nominal Supply Current	15mA
Memory Type	Non-Volatile
Clock Frequency	66MHz
Access Time	6 ns
Memory Format	FLASH
Memory Interface	SPI
Data Bus Width	8b
Organization	64MX1
Memory Width	1
Write Cycle Time - Word, Page	6ms
Density	64 Mb
Standby Current-Max	0.000025A
Sync/Async	Asynchronous
Word Size	8b
Programming Voltage	2.7V
Serial Bus Type	SPI
Endurance	100000 Write/Erase Cycles
Data Retention Time-Min	20
Write Protection	HARDWARE
Height Seated (Max)	1.4mm
Length	8mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

AT45DB642D-CU Product Details

AT45DB642D-CU Overview

As far as its memory type goes, it falls into the Non-Volatile category. In addition, memory ics is available in a Tray case as well. Embedded in the 24-LBGA, CSPBGA case, memory ics is a single file. A memory chip with a capacity of 64Mb 1056Bytes x 8192 pages is used on this device. There is a mainstream memory format used by this device, which is called FLASH-format memory. Due to its extended operating temperature range, the device is well suited for a wide range of demanding applications. It is capable of handling a voltage supply of 2.7V~3.6V. A Surface Mount mounting type is recommended for this product. On the chip, there are 24 terminations that are planted. As many as 1 functions are supported for comprehensive working. The memory device is designed to be supplied with an 3V volt power supply in order to operate properly. It has a clock frequency of 66MHz. A 24-pin package containing this memory device is used to house this device. I have noticed that the memory device has 24 pins, which indicates that it has 24 locations in the memory. This memory chip has an operating supply voltage of 3.3V. As a result of the Surface Mount mounting configuration, this chip is designed to be straightforward, high-efficiency, and easy to install. As far as the nominal supply current of this memory component is concerned, it is rated at 15mA. Despite all its merits, this chip also features ORGANIZED AS 8192 PAGES OF 1056 BYTES EACH to boost system performance. Integrated into this memory is a SPI-type serial bus that facilitates data transmission to the CPU. The programming voltage required for certain nonvolatile memory arrays is 2.7V.
