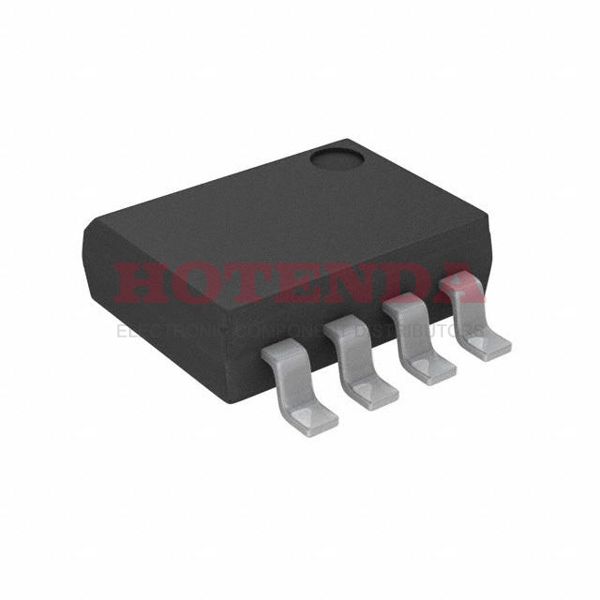

Name: AT45DB081D-SSU-SL955
Brand: Adesto Technologies
SKU: AT45DB081D-SSU-SL955
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8
Operating Temperature	-40°C~85°C TC
Packaging	Tape & Reel (TR)
Published	1997
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	ORGANIZED AS 4096 PAGES OF 256 BYTES EACH
Technology	CMOS
Voltage - Supply	2.7V~3.6V
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	3V
Terminal Pitch	1.27mm
Pin Count	8
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3/3.3V
Supply Voltage-Min (Vsup)	2.7V
Interface	SPI, Serial
Memory Size	8Mb 256Bytes x 4096 pages
Nominal Supply Current	15mA
Memory Type	Non-Volatile
Clock Frequency	66MHz
Access Time	6 ns
Memory Format	FLASH
Memory Interface	SPI
Memory Width	1
Write Cycle Time - Word, Page	4ms
Address Bus Width	1b
Density	8 Mb
Standby Current-Max	0.000025A
Sync/Async	Synchronous
Programming Voltage	2.7V
Serial Bus Type	SPI
Endurance	100000 Write/Erase Cycles
Data Retention Time-Min	20
Write Protection	HARDWARE/SOFTWARE
Height Seated (Max)	1.75mm
Length	4.925mm
Radiation Hardening	No
RoHS Status	RoHS Compliant

AT45DB081D-SSU-SL955 Product Details

AT45DB081D-SSU-SL955 Overview

In terms of its memory type, it can be classified as Non-Volatile. In addition, memory ics is available in a Tape & Reel (TR) case as well. In the case of 8-SOIC (0.154, 3.90mm Width), it is embedded within the case. Memory size on the chip is 8Mb 256Bytes x 4096 pages. In this device, the memory is of the FLASH-format, which is a popular format in the mainstream computing sector. Due to its wide temperature range of -40°C~85°C TC, this device is well suited to a wide range of applications that require high performance. A supply voltage of 2.7V~3.6V can be applied to it. The recommended mounting type for this device is Surface Mount. The chip has 8 terminations. In total, 1 functions are supported by this part. The memory device is designed to be supplied with an 3V volt power supply in order to operate properly. A clock frequency rotation within 66MHz is used for the ic memory chip to rotate data. A 8-pin package containing this memory device is used to house this device. I have noticed that the memory device has 8 pins, which indicates that it has 8 locations in the memory. As a result of the Surface Mount mounting configuration, this chip is designed to be straightforward, high-efficiency, and easy to install. In terms of its nominal supply current, this memory component is rated at 15mA. Despite all its benefits, this memory chip also offers ORGANIZED AS 4096 PAGES OF 256 BYTES EACH for improved system performance. Talking about power supplies, this memory chip requires merely 3/3.3V. A SPI-type serial bus is used to carry and transfer data to the CPU through this memory. There is a need for a programming voltage of 2.7V in order to modify the state of some nonvolatile memory arrays.
