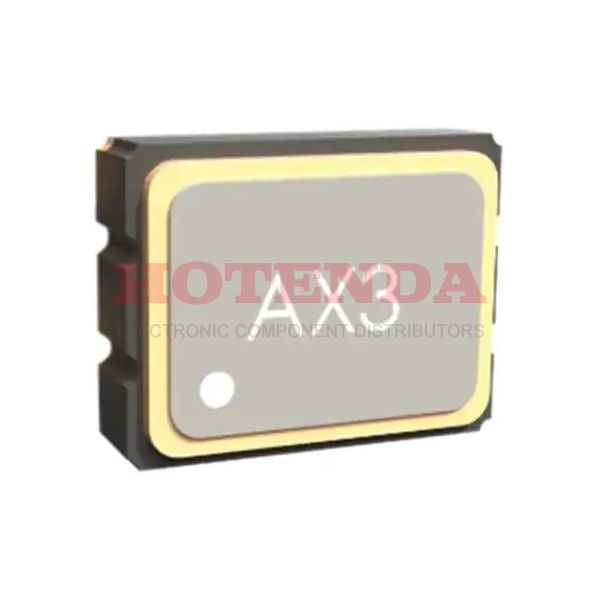

AX3PAF1-114.2850 datasheet pdf and Oscillators product details from Abracon LLC stock available on our website
SOT-23
AX3PAF1-114.2850 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mounting Type
Surface Mount
Package / Case
6-SMD, No Lead
Operating Temperature
-40°C~85°C
Packaging
Strip
Series
ClearClock™ AX3
Size / Dimension
0.126Lx0.098W 3.20mmx2.50mm
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Type
XO (Standard)
Voltage - Supply
3.3V
Frequency
114.285MHz
Frequency Stability
±25ppm
Output
LVPECL
Function
Enable/Disable
Base Resonator
Crystal
Current - Supply (Max)
50mA
Current - Supply (Disable) (Max)
10μA
Height Seated (Max)
0.043 1.10mm
RoHS Status
RoHS Compliant
In-Stock:1538 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$4.275408
$4.275408
10
$4.033404
$40.33404
100
$3.805098
$380.5098
500
$3.589714
$1794.857
1000
$3.386523
$3386.523
AX3PAF1-114.2850 Product Details
The Abracon Oscillators AX3PAF1-114.2850 is a high-performance crystal oscillator designed for use in a variety of applications. This oscillator features a frequency of 114.285MHz and a voltage of 3.3V. It is designed with a low-voltage positive edge (LVPE) output, making it ideal for use in low-power applications. The oscillator is also designed with a low-jitter and low-phase noise performance, making it suitable for use in high-precision applications. The oscillator is also RoHS compliant, making it an environmentally friendly choice. The Abracon Oscillators AX3PAF1-114.2850 is a reliable and cost-effective solution for a variety of applications.
