Name: ASV-50.000MHZ-EJ-T
Brand: Abracon LLC
SKU: ASV-50.000MHZ-EJ-T
Price: 1.73000 USD
Availability: InStock

new-10%

ASV-50.000MHZ-EJ-T

Manufacturer part number:ASV-50.000MHZ-EJ-T

Manufacturer:Abracon LLC

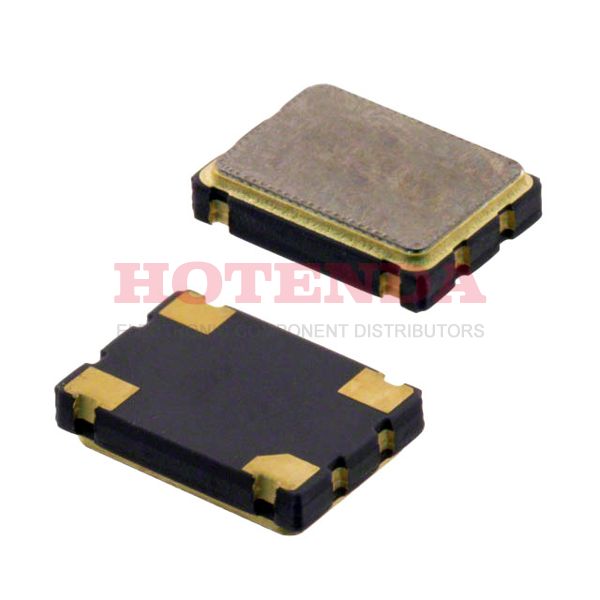

Description:ABRACON - ASV-50.000MHZ-EJ-T - Oscillator, 50 MHz, 20 ppm, SMD, 7mm x 5mm, 3.3 V, ASV Series

Case Package:SOT-23

Datasheet:ASV-50.000MHZ-EJ-T Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Number of Pins	4
Operating Temperature	-20°C~70°C
Packaging	Tape & Reel (TR)
Series	ASV
Size / Dimension	0.276Lx0.200W 7.00mmx5.08mm
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
Termination	SMD/SMT
Type	XO (Standard)
Terminal Finish	Gold (Au) - with Nickel (Ni) barrier
Subcategory	Other Oscillators
Voltage - Supply	3.3V
Supply Voltage	3.3V
Depth	5.08mm
Frequency	50MHz
Frequency Stability	±20ppm
Output	HCMOS
Function	Enable/Disable
Base Resonator	Crystal
Physical Dimension	7.0mm x 5.08mm x 1.8mm
Operating Frequency	50MHz
Operating Supply Voltage	3.3V
Current - Supply (Disable) (Max)	10μA
Load Capacitance	15pF
Max Supply Current	30mA
Frequency Tolerance	0.002%
Height	1.8034mm
Height Seated (Max)	0.071 1.80mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

ASV-50.000MHZ-EJ-T Product Details

The Abracon ASV-50.000MHZ-EJ-T Oscillator is a reliable and cost-effective solution for frequency control applications. This oscillator offers a frequency of 50 MHz with a tolerance of 20 ppm. It is designed for surface mount applications and measures 7mm x 5mm. The oscillator operates on a voltage of 3.3 V and is part of the ASV Series. It is ideal for use in a variety of applications such as telecommunications, automotive, and industrial. The ASV-50.000MHZ-EJ-T Oscillator is a reliable and cost-effective solution for frequency control applications.
