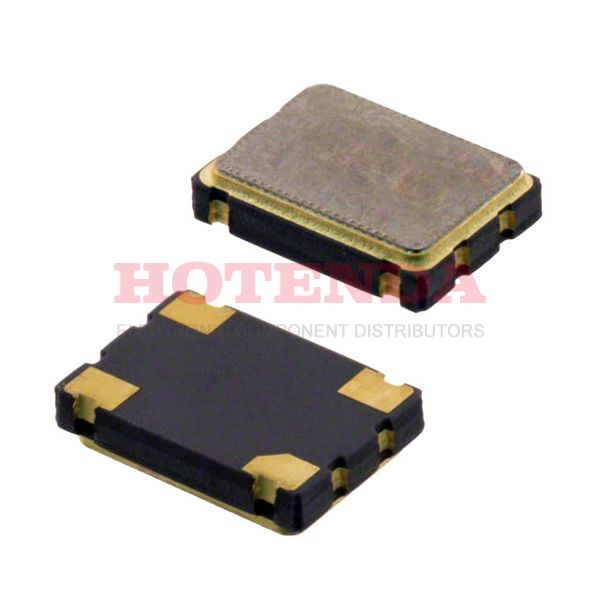

ASV-48.000MHZ-EJ-T datasheet pdf and Oscillators product details from Abracon LLC stock available on our website
SOT-23
ASV-48.000MHZ-EJ-T Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
10 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
4-SMD, No Lead
Number of Pins
4
Operating Temperature
-20°C~70°C
Packaging
Tape & Reel (TR)
Series
ASV
Size / Dimension
0.276Lx0.200W 7.00mmx5.08mm
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
SMD/SMT
Type
XO (Standard)
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Voltage - Supply
3.3V
Depth
5.08mm
Frequency
48MHz
Frequency Stability
±20ppm
Output
HCMOS
Function
Enable/Disable
Base Resonator
Crystal
Current - Supply (Max)
25mA
Operating Supply Voltage
3.3V
Current - Supply (Disable) (Max)
10μA
Max Supply Voltage
3.63V
Min Supply Voltage
2.97V
Load Capacitance
15pF
Max Supply Current
25mA
Frequency Tolerance
0.002%
Height
1.8034mm
Height Seated (Max)
0.071 1.80mm
Length
7mm
Width
5.08mm
Radiation Hardening
No
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:5016 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$2.747175
$2.747175
10
$2.591675
$25.91675
100
$2.444976
$244.4976
500
$2.306581
$1153.2905
1000
$2.176020
$2176.02
ASV-48.000MHZ-EJ-T Product Details
Abracon Oscillators ASV-48.000MHZ-EJ-T is a surface mount oscillator with a frequency of 48MHz. It is a low-cost, low-power, and high-performance device that is suitable for a wide range of applications. It features a low-jitter output, a wide operating temperature range, and a wide frequency range. It is ideal for use in embedded systems, communications, and industrial applications.
Features of Abracon Oscillators ASV-48.000MHZ-EJ-T include:
• Frequency: 48MHz • Package: Surface Mount • Low-Jitter Output • Wide Operating Temperature Range: -40°C to +85°C • Wide Frequency Range: 10MHz to 200MHz • Low-Power Consumption • High-Performance
Applications of Abracon Oscillators ASV-48.000MHZ-EJ-T include:
• Embedded Systems • Communications • Industrial Applications • Automotive Applications • Medical Devices • Networking Equipment • Test and Measurement Equipment
