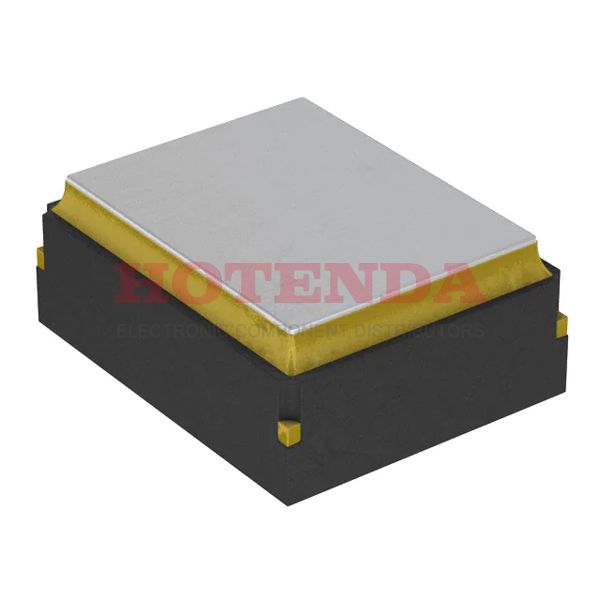

Name: ASG2-D-V-B-644.53125MHZ
Brand: Abracon LLC
SKU: ASG2-D-V-B-644.53125MHZ
Price: 11.09000 USD
Availability: InStock

new

ASG2-D-V-B-644.53125MHZ

Manufacturer part number:ASG2-D-V-B-644.53125MHZ

Manufacturer:Abracon LLC

Description:ASG2-D-V-B-644.53125MHZ datasheet pdf and Oscillators product details from Abracon LLC stock available on our website

Case Package:SOT-23

Datasheet:ASG2-D-V-B-644.53125MHZ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Surface Mount	YES
Mounting Feature	SURFACE MOUNT
Weight	13.012431mg
Mounting Style	Surface Mount
Operating Temperature Max Deg. C	85C
Product Depth (mm)	2(mm)
Operating Temperature Min Deg. C	-40C
Rad Hardened	No
Height - Seated (Max)	0.039 (1.00mm)
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	ABRACON
Brand	ABRACON
RoHS	Details
Package	Strip
Mfr	Abracon LLC
Product Status	Active
Operating Temperature	-40°C~85°C
Packaging	Bulk
Series	ASG2-D
Size / Dimension	0.098Lx0.079W 2.50mmx2.00mm
Pbfree Code	Yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
Type	VCXO
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Additional Feature	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; BULK
Subcategory	Oscillators
Voltage - Supply	2.5V
Reach Compliance Code	compliant
Frequency	644.53125MHz
Frequency Stability	±50ppm
Output	LVDS
Pin Count	6
Termination Style	SMD/SMT
Function	Enable/Disable
Base Resonator	Crystal
Current - Supply (Max)	40mA
Physical Dimension	2.5mm x 2.0mm x 1.0mm
Operating Supply Voltage	2.5V
Rise Time-Max	0.6 ns
Fall Time-Max	0.6 ns
Symmetry-Max	55/45 %
Current - Supply (Disable) (Max)	--
Max Supply Voltage	2.625V
Min Supply Voltage	2.375V
Oscillator Type	LVDS
Load Capacitance	10pF
Max Supply Current	40mA
Output Load	100 OHM, 10 pF
Product Type	VCXO
Frequency Adjustment-Mechanical	NO
Linearity	15%
Control Voltage-Max	2.5 V
Screening Level	Industrial
Frequency Deviation/Pullability	35 ppm
Max Duty Cycle	55 %
Output Format	LVDS
Absolute Pull Range (APR)	±35ppm
Product Category	VCXO Oscillators
Product Length (mm)	2.5(mm)
Height	990.6μm
Height Seated (Max)	0.039 1.00mm
Length	2.4892mm
Width	2.0066mm
Product Height (mm)	1(mm)
RoHS Status	RoHS Compliant
Ratings	--

About ASG2-D-V-B-644.53125MHZ

The ASG2-D-V-B-644.53125MHZ from Abracon LLC is a high-performance microcontroller designed for a wide range of embedded applications. This component features ASG2-D-V-B-644.53125MHZ datasheet pdf and Oscillators product details from Abracon LLC stock available on our website.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the ASG2-D-V-B-644.53125MHZ, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
