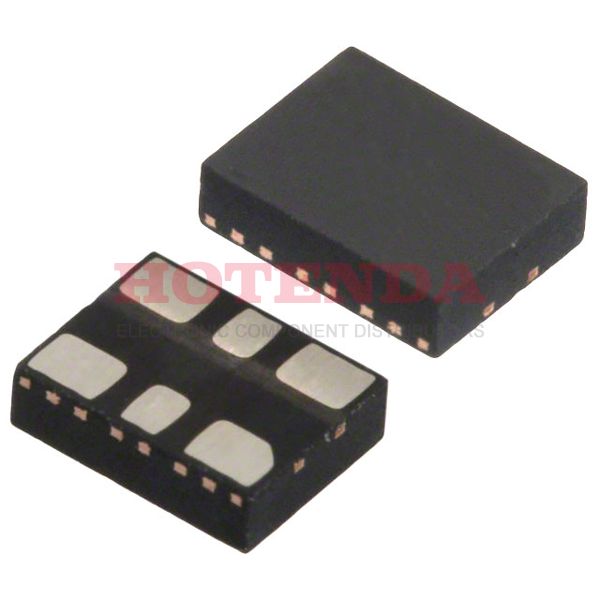

ASEMPC-25.000MHZ-Z-T datasheet pdf and Oscillators product details from Abracon LLC stock available on our website
SOT-23
ASEMPC-25.000MHZ-Z-T Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
15 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
6-SMD, No Lead
Number of Pins
6
Operating Temperature
-55°C~125°C
Packaging
Tape & Reel (TR)
Series
ASEMP, Pure Silicon™
Size / Dimension
0.126Lx0.098W 3.20mmx2.50mm
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
SMD/SMT
Type
XO (Standard)
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Voltage - Supply
2.25V~3.6V
Frequency
25MHz
Frequency Stability
±50ppm
Output
CMOS
Function
Enable/Disable
Base Resonator
MEMS
Current - Supply (Max)
35mA
Current - Supply (Disable) (Max)
26mA
Max Supply Voltage
2.25V
Min Supply Voltage
3.6V
Load Capacitance
15pF
Max Supply Current
35mA
Height
889μm
Height Seated (Max)
0.035 0.90mm
Length
3.2004mm
Width
2.4892mm
REACH SVHC
No SVHC
RoHS Status
RoHS Compliant
In-Stock:2023 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
ASEMPC-25.000MHZ-Z-T Product Details
Description: Abracon's ASEMPC-25.000MHZ-Z-T is a MEMS oscillator with a frequency of 25.000MHz. It is a CMOS oscillator in a 5x3.2mm SMD package.
Features: - Frequency of 25.000MHz - MEMS oscillator - CMOS oscillator - 5x3.2mm SMD package - Low power consumption - High stability and accuracy - Low jitter
Applications: The Abracon ASEMPC-25.000MHZ-Z-T oscillator is suitable for a wide range of applications, including telecommunications, networking, industrial automation, medical, automotive, and consumer electronics. It is ideal for use in applications that require high stability and accuracy, such as clock synchronization, timing, and frequency control.
