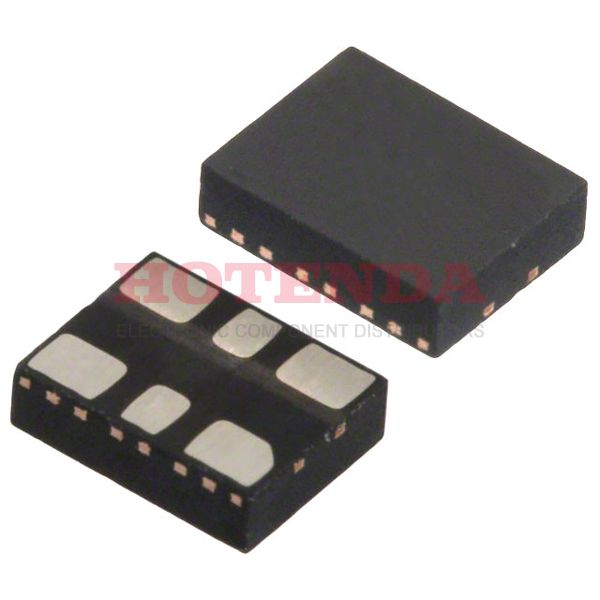

ASEMPC-25.000MHZ-LR-T datasheet pdf and Oscillators product details from Abracon LLC stock available on our website
SOT-23
ASEMPC-25.000MHZ-LR-T Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
15 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
6-SMD, No Lead
Number of Pins
6
Operating Temperature
-40°C~85°C
Packaging
Tape & Reel (TR)
Series
ASEMP, Pure Silicon™
Size / Dimension
0.126Lx0.098W 3.20mmx2.50mm
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
SMD/SMT
Type
XO (Standard)
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Voltage - Supply
2.25V~3.6V
Frequency
25MHz
Frequency Stability
±25ppm
Output
CMOS
Function
Enable/Disable
Base Resonator
MEMS
Current - Supply (Max)
35mA
Operating Supply Voltage
3.6V
Current - Supply (Disable) (Max)
26mA
Load Capacitance
15pF
Max Supply Current
35mA
Height
889μm
Height Seated (Max)
0.035 0.90mm
Length
3.2004mm
Width
2.4892mm
REACH SVHC
No SVHC
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:4064 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
ASEMPC-25.000MHZ-LR-T Product Details
Abracon's ASEMPC-25.000MHZ-LR-T is a MEMS oscillator with a frequency of 25.000MHz and a CMOS SMD package. It is a low-power, low-jitter oscillator that is ideal for applications requiring high frequency accuracy and stability. It features a low-noise, low-power design, and is capable of operating over a wide temperature range. The oscillator is also RoHS compliant and has a high shock and vibration resistance.
The ASEMPC-25.000MHZ-LR-T is suitable for a variety of applications, including communications, networking, and industrial automation. It is also suitable for use in medical and automotive applications. It is ideal for use in applications requiring high frequency accuracy and stability, such as clock and data recovery, clock synchronization, and timing control. The oscillator is also suitable for use in applications requiring low-power operation, such as battery-powered devices.
