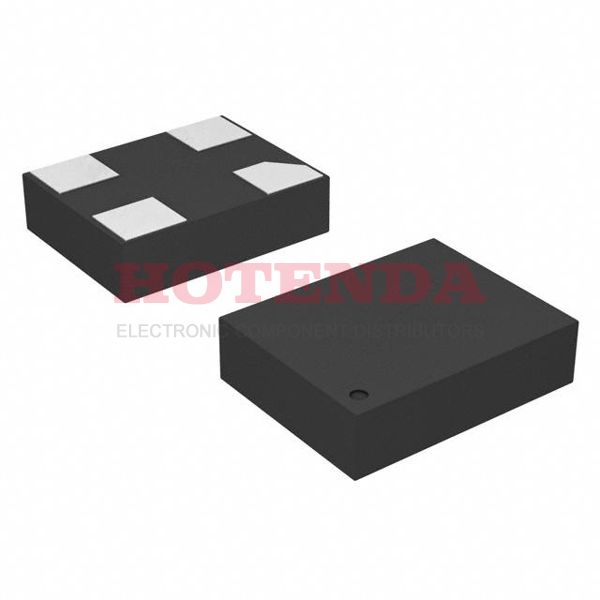

ASEM1-16.000MHZ-LC-T datasheet pdf and Oscillators product details from Abracon LLC stock available on our website
SOT-23
ASEM1-16.000MHZ-LC-T Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
13 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
4-SMD, No Lead
Number of Pins
4
Operating Temperature
-40°C~85°C
Packaging
Tape & Reel (TR)
Series
ASEM, Pure Silicon™
Size / Dimension
0.126Lx0.098W 3.20mmx2.50mm
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
SMD/SMT
Type
XO (Standard)
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Voltage - Supply
3.3V
Frequency
16MHz
Frequency Stability
±50ppm
Output
CMOS
Function
Standby (Power Down)
Base Resonator
MEMS
Current - Supply (Max)
10mA
Current - Supply (Disable) (Max)
1μA
Max Supply Voltage
3.3V
Min Supply Voltage
1.8V
Load Capacitance
15pF
Max Supply Current
10mA
Height
889μm
Height Seated (Max)
0.035 0.90mm
Length
3.2004mm
Width
2.4892mm
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:5070 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
ASEM1-16.000MHZ-LC-T Product Details
Abracon's ASEM1-16.000MHZ-LC-T is a MEMS oscillator that offers a wide range of features and applications. It is a CMOS SMD oscillator with a frequency of 16.000MHz. It is designed to provide a reliable and stable clock signal for a variety of applications.
Features: - Low power consumption - High frequency stability - Low jitter - Low phase noise - High reliability - RoHS compliant
Applications: - Networking and communication systems - Automotive electronics - Industrial automation - Medical devices - Consumer electronics - Test and measurement equipment
