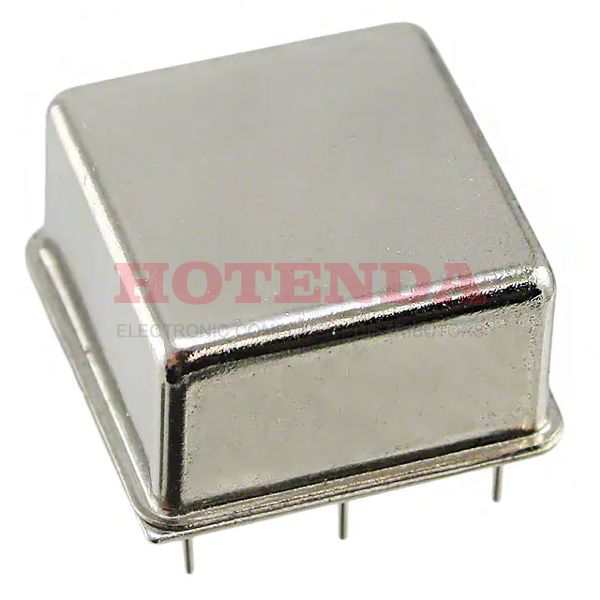

AOCJY2-10.000MHZ-F-SW datasheet pdf and Oscillators product details from Abracon LLC stock available on our website
SOT-23
AOCJY2-10.000MHZ-F-SW Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
15 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
6-DIP (0.600, 15.24mm), 5 Leads
Surface Mount
NO
Mounting Feature
THROUGH HOLE MOUNT
Number of Terminals
5
Mounting Style
Through Hole
Height - Seated (Max)
0.433 (11.00mm)
Manufacturer
ABRACON
Brand
ABRACON
RoHS
Details
Package
Tray
Mfr
Abracon LLC
Product Status
Active
Operating Temperature
-40°C~75°C
Packaging
Digi-Reel®
Series
AOCJY2
Size / Dimension
0.827Lx0.827W 21.00mmx21.00mm
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
5
Termination
Radial
Type
VCOCXO
Voltage - Supply
3.3V
Supply Voltage
3.3V
Reach Compliance Code
compliant
Frequency
10MHz
Frequency Stability
±30ppb
Output
Sine Wave
Termination Style
Radial
Function
--
Base Resonator
Crystal
Current - Supply (Max)
--
Qualification Status
Not Qualified
Operating Frequency
10MHz
Operating Supply Voltage
3.3V
Power Supplies
3.3 V
Current - Supply (Disable) (Max)
--
Oscillator Type
SINE
Product Type
OCXO
Operating Frequency-Max
100 MHz
Operating Frequency-Min
10 MHz
Absolute Pull Range (APR)
-
Product Category
OCXO Oscillators
Height
10.9982mm
Height Seated (Max)
0.453 11.50mm
Width
21 mm
Length
21 mm
Radiation Hardening
No
RoHS Status
RoHS Compliant
Ratings
--
In-Stock:72 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
5
$238.50600
$1192.53
AOCJY2-10.000MHZ-F-SW Product Details
Abracon Oscillators AOCJY2-10.000MHZ-F-SW are OCXO (Oven Controlled Crystal Oscillators) oscillators with a frequency of 10MHz and a voltage of 3.3V. They have a low frequency stability of 30ppb over a wide temperature range of -40C to +75C.
Features of Abracon Oscillators AOCJY2-10.000MHZ-F-SW include a low frequency stability of 30ppb, a wide temperature range of -40C to +75C, and a frequency of 10MHz.
Applications of Abracon Oscillators AOCJY2-10.000MHZ-F-SW include use in telecommunications, medical equipment, and industrial automation. They can also be used in applications that require a high level of accuracy and stability, such as in precision timing and frequency control.
