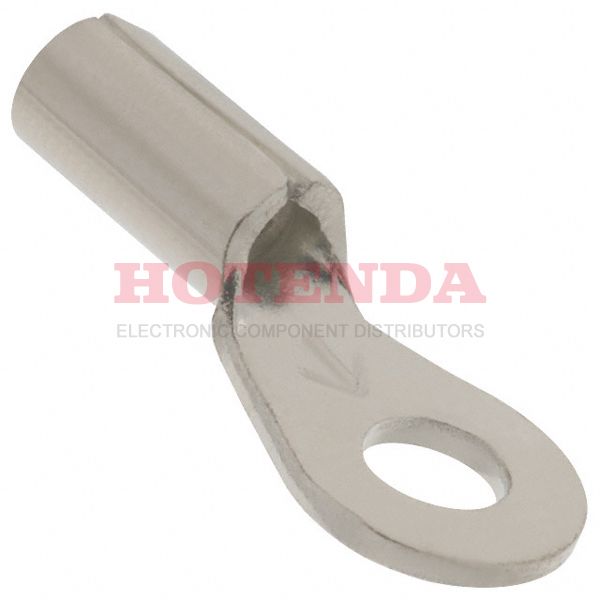

MU18-4R/SK datasheet pdf and Terminals - Ring Connectors product details from 3M stock available on our website
SOT-23
MU18-4R/SK Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
3 Weeks
Contact Material
Copper, ETP
Contact Plating
Tin
Mount
Stud
Mounting Type
Free Hanging (In-Line)
Material
Copper
Weight
721.211868g
Packaging
Bulk
Series
Scotchlok™
Published
2000
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
Orientation
Straight
Contact Finish
Tin
Approval Agency
CSA, UL
Lead Length
3m
Wire Gauge
18-22 AWG
Wire Gauge (Max)
18 AWG
Wire Gauge (Min)
22 AWG
Cable Length
3m
Wire/Cable Gauge
18 AWG
Insulation
Non-Insulated
Terminal Type
Circular
Sensing Distance
3 m
Stud/Tab Size
4 Stud
Length
3m
Thickness
0.030 0.76mm
Length - Overall
0.600 15.24mm
Width - Outer Edges
0.250 6.35mm
RoHS Status
RoHS Compliant
In-Stock:17303 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.27000
$0.27
10
$0.26000
$2.6
25
$0.22280
$5.57
50
$0.18940
$9.47
100
$0.18200
$18.2
250
$0.16348
$40.87
500
$0.15604
$78.02
MU18-4R/SK Product Details
3M Terminals - Ring Connectors MU18-4R/SK are a type of electrical connector designed for use in a variety of applications. These connectors are designed to provide a secure connection between two wires or cables. They feature a crimp-style connection that is easy to install and provides a reliable connection. The connectors are made from high-quality materials and are designed to withstand harsh environmental conditions.
Features: - Made from high-quality materials for durability and reliability - Crimp-style connection for easy installation - Rated for 18-22 AWG wire - Rated for up to 4 circuits - RoHS compliant
Applications: 3M Terminals - Ring Connectors MU18-4R/SK are suitable for a variety of applications, including automotive, industrial, and consumer electronics. They are commonly used in automotive wiring harnesses, industrial control systems, and consumer electronics. They are also suitable for use in a variety of other applications where a secure connection between two wires or cables is required.
