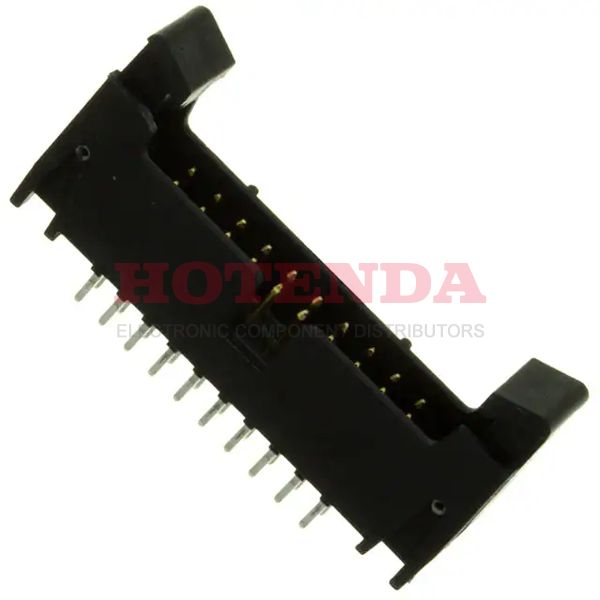

Name: 155220-6302-RB
Brand: 3M
SKU: 155220-6302-RB
Price: 8.62000 USD
Availability: InStock

new

155220-6302-RB

Manufacturer part number:155220-6302-RB

Manufacturer:3M

Description:155220-6302-RB datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from 3M stock available on our website

Case Package:SOT-23

Datasheet:155220-6302-RB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Material	Polymer
Operating Temperature	-55°C~105°C
Packaging	Tray
Published	2007
Series	1552
Feature	Keying Slot
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	20
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Color	Black
Number of Rows	2
Gender	Male
Fastening Type	Latch Lock/Eject Hooks
Contact Finish - Mating	Gold
Contact Type	Male Pin
Current Rating (Amps)	1.25A
Pitch	2mm
Orientation	Straight
Depth	6.27mm
Insulation Height	0.425 10.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	1A
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.112 2.84mm
Shrouding	Shrouded - 4 Wall
Lead Pitch	2mm
Number of Contacts	20
Contact Finish - Post	Tin
Contact Length - Mating	0.150 3.81mm
Contact Gender	Male
Housing Color	Black
Lead Length	2.84mm
Max Current Rating	1A
Mating Post Length	3.8mm
Length	31.09mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	200.0μin 5.08μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

155220-6302-RB Product Details

155220-6302-RB Overview

The packaging contains Header.There is a Through Hole mounting type for the device.An Tray case is utilized for packaging the product.As a product of the 1552 Series, it can be found in this category.When the temperature falls below 105°C, it is best to use it.There must be a minimum temperature of -55°C for this device to operate.Several benefits come from the Keying Slot feature.Through Hole mounts the part.It runs at -55°C~105°C Operating Temperature.
