CC1206JRX7R9BB332

  • CC1206JRX7R9BB332
  • CC1206JRX7R9BB332

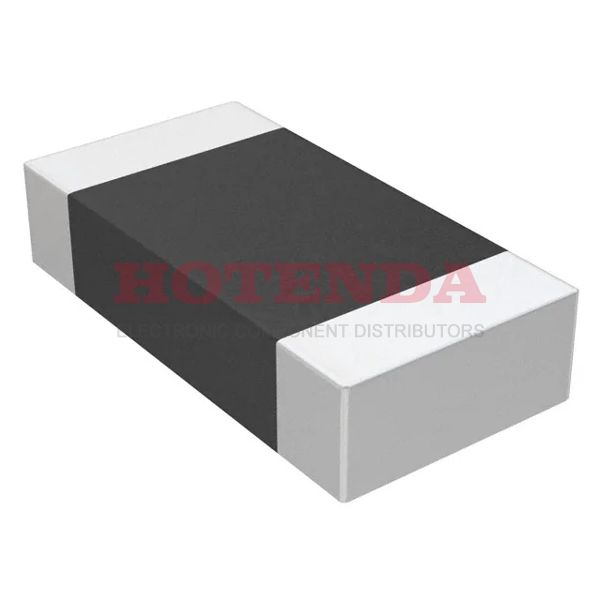

CC1206JRX7R9BB332

CC1206JRX7R9BB332

Yageo

CC1206JRX7R9BB332 datasheet pdf and Ceramic Capacitors product details from Yageo stock available on our website

SOT-23

CC1206JRX7R9BB332 Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 33 Weeks
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Terminal Shape WRAPAROUND
Material Ceramic
Weight 16.187578mg
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2010
Series CC
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
HTS Code 8532.24.00.20
Capacitance 3300pF
Voltage - Rated DC 50V
Packing Method TR, PAPER, 7 INCH
Depth 1.6mm
Case Code (Metric) 3216
Case Code (Imperial) 1206
Temperature Characteristics Code X7R
Multilayer Yes
Halogen Free Halogen Free
Length 3.2mm
Thickness (Max) 0.037 0.95mm
Thickness 939.8μm
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
CC1206JRX7R9BB332 Product Details

CC1206JRX7R9BB332 Overview


For this device, the size/dimension of the program is 0.126Lx0.063W 3.20mmx1.60mm.This coefficient equals X7R indicates that a substance's electrical resistance changes with temperature per degree change.Ceramic capacitor is able to operate wCeramic capacitorh the voltage - Rated DC of 50V.

CC1206JRX7R9BB332 Features


a size/dimension of 0.126Lx0.063W 3.20mmx1.60mm
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 50V

CC1206JRX7R9BB332 Applications


There are a lot of Yageo CC1206JRX7R9BB332 applications of ceramic capacitors.

  • Mobile devices
  • Power supply circuit
  • Servers, PCs, tablets
  • General electronic equipment
