CC0603KRX7R8BB823

  • CC0603KRX7R8BB823
  • CC0603KRX7R8BB823

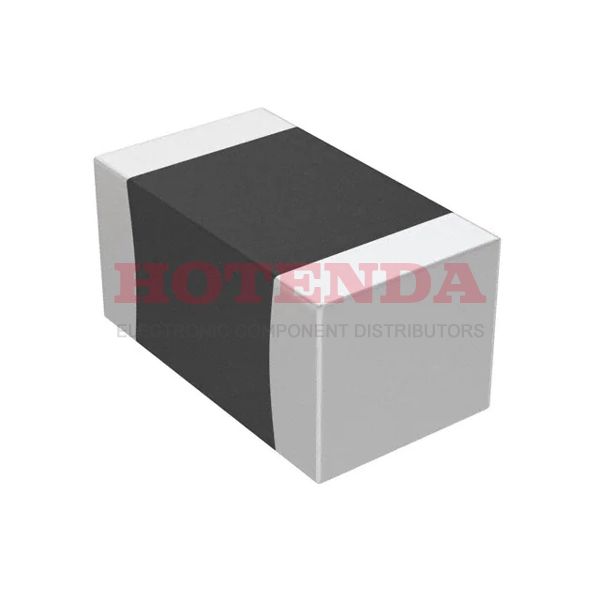

CC0603KRX7R8BB823

CC0603KRX7R8BB823

Yageo

CC0603KRX7R8BB823 datasheet pdf and Ceramic Capacitors product details from Yageo stock available on our website

SOT-23

CC0603KRX7R8BB823 Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 33 Weeks
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Terminal Shape WRAPAROUND
Weight 2.012816mg
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2010
Series CC
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Ceramic
Applications General Purpose
HTS Code 8532.24.00.20
Capacitance 0.082μF
Voltage - Rated DC 25V
Packing Method TR, PAPER, 7 INCH
Depth 800μm
Case Code (Metric) 1608
Case Code (Imperial) 0603
Temperature Characteristics Code X7R
Multilayer Yes
Halogen Free Halogen Free
Thickness (Max) 0.035 0.90mm
Thickness 889μm
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
1 $0.030112 $0.030112
500 $0.022141 $11.0705
1000 $0.018451 $18.451
2000 $0.016927 $33.854
5000 $0.015820 $79.1
10000 $0.014716 $147.16
15000 $0.014232 $213.48
50000 $0.013994 $699.7
CC0603KRX7R8BB823 Product Details

CC0603KRX7R8BB823 Overview


Consequently, the program has size/dimension 0.063Lx0.031W 1.60mmx0.80mm.Its coefficient is X7R and determines the change in resistance per degree of temperature for a substance.A voltage of 25V can be used for operation.

CC0603KRX7R8BB823 Features


a size/dimension of 0.063Lx0.031W 1.60mmx0.80mm
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 25V

CC0603KRX7R8BB823 Applications


There are a lot of Yageo CC0603KRX7R8BB823 applications of ceramic capacitors.

  • Servers, PCs, tablets
  • Power supply circuit
  • Mobile devices
  • General electronic equipment
