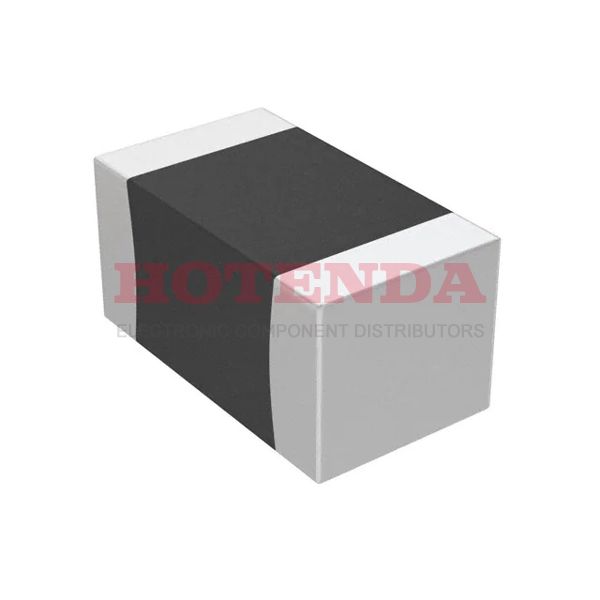

CC0603KRX5R6BB684

CC0603KRX5R6BB684

Yageo

CC0603KRX5R6BB684 datasheet pdf and Ceramic Capacitors product details from Yageo stock available on our website

SOT-23

CC0603KRX5R6BB684 Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 33 Weeks
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Terminal Shape WRAPAROUND
Material Ceramic
Weight 2.012816mg
Operating Temperature -55°C~85°C
Packaging Tape & Reel (TR)
Published 2010
Series CC
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient X5R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
HTS Code 8532.24.00.20
Capacitance 0.68μF
Voltage - Rated DC 10V
Packing Method TR, PAPER, 7 INCH
Depth 800μm
Case Code (Metric) 1608
Case Code (Imperial) 0603
Temperature Characteristics Code X5R
Multilayer Yes
Insulation Resistance 10GOhm
Dissipation Factor 7 %
Halogen Free Halogen Free
Height 900μm
Length 1.6mm
Width 0.8mm
Thickness (Max) 0.035 0.90mm
Thickness 889μm
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
1 $0.049969 $0.049969
500 $0.036742 $18.371
1000 $0.030618 $30.618
2000 $0.028090 $56.18
5000 $0.026252 $131.26
10000 $0.024421 $244.21
15000 $0.023618 $354.27
50000 $0.023223 $1161.15
CC0603KRX5R6BB684 Product Details

CC0603KRX5R6BB684 Overview


Consequently, the program has size/dimension 0.063Lx0.031W 1.60mmx0.80mm.Generally, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance with respect to temperature changes, and it is equal to X5R.This device can operate on voltage - Rated DC of 10V.This capacitor's insulation resistance is 10GOhm, the alternating-current resistance between two electrical conductors or two systems of conductors separated by an insulating material.

CC0603KRX5R6BB684 Features


a size/dimension of 0.063Lx0.031W 1.60mmx0.80mm
with X5R being the highest temperature coefficient
with the voltage - Rated DC of 10V

CC0603KRX5R6BB684 Applications


There are a lot of Yageo CC0603KRX5R6BB684 applications of ceramic capacitors.

  • Power supply circuit
  • Servers, PCs, tablets
  • General electronic equipment
  • Mobile devices
