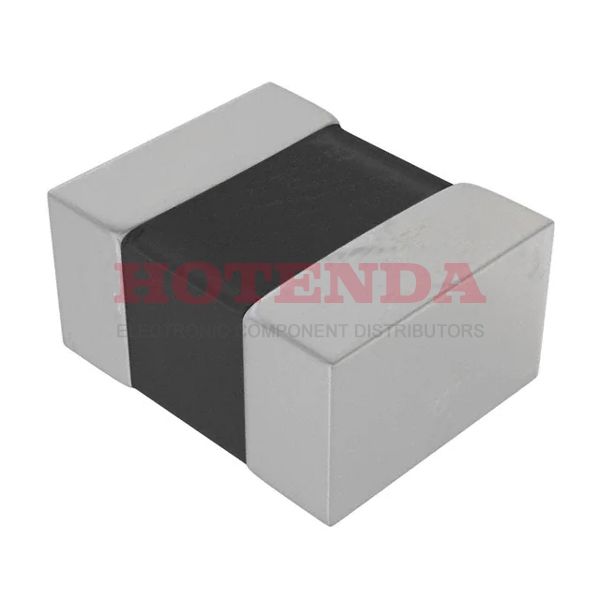

74479776247

new-10%

Manufacturer part number:74479776247

Manufacturer:Würth Elektronik

Description:74479776247 datasheet pdf and Fixed Inductors product details from Würth Elektronik stock available on our website

Case Package:SOT-23

Datasheet:74479776247 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	0806 (2016 Metric)
Number of Pins	2
Supplier Device Package	0806 (2016 Metric)
Core Material	Ferrite
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	WE-PMI
Size / Dimension	0.079Lx0.063W 2.00mmx1.60mm
Tolerance	±20%
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
Type	Multilayer
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Current Rating (Amps)	1A
Shielding	Shielded
Depth	1.6mm
Current Rating	1A
Case Code (Metric)	2016
Case Code (Imperial)	0806
Inductance	4.7μH
Test Frequency	1MHz
DC Resistance (DCR)	160mOhm
Max DC Current	1A
Frequency - Self Resonant	45MHz
Q @ Freq	10 @ 1MHz
Inductance Frequency - Test	1MHz
Current - Saturation	140mA
Q Factor	10
Inductance Tolerance	20%
Series Resistance	160μOhm
Height	1mm
Height Seated (Max)	0.039 1.00mm
Length	2mm
Width	1.6002mm
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
