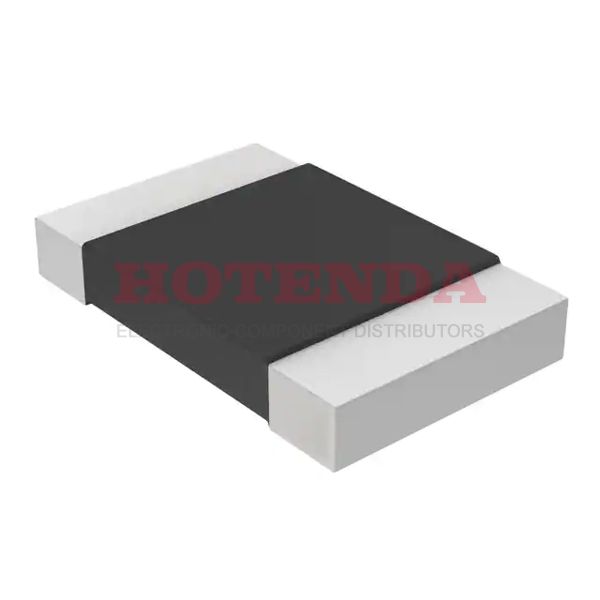

WSL0805R1000FEA18

new-10%

Manufacturer part number:WSL0805R1000FEA18

Manufacturer:Vishay Dale

Description:RES 0.1 OHM 1% 1/4W 0805

Case Package:SOT-23

Datasheet:WSL0805R1000FEA18 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	32 Weeks
Contact Plating	Tin
Mount	Surface Mount
Package / Case	0805 (2012 Metric)
Terminal Shape	WRAPAROUND
Weight	4.791069mg
Operating Temperature	-65°C~170°C
Packaging	Tape & Reel (TR)
Published	2016
Series	WSL-HP
Size / Dimension	0.080Lx0.050W 2.03mmx1.27mm
Tolerance	±1%
Feature	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	±75ppm/°C
Resistance	100mOhm
Composition	Metal Element
Power (Watts)	0.25W 1/4W
Power Rating	125mW
Packing Method	TR, Punched Paper, 7 Inch
Max Power Dissipation	250mW
Technology	METAL STRIP
Depth	1.27mm
Construction	Rectangular
Resistor Type	FIXED RESISTOR
Military Standard	Not
Case Code (Metric)	2012
Case Code (Imperial)	0805
Height	330μm
Height Seated (Max)	0.018 0.46mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	AEC-Q200
