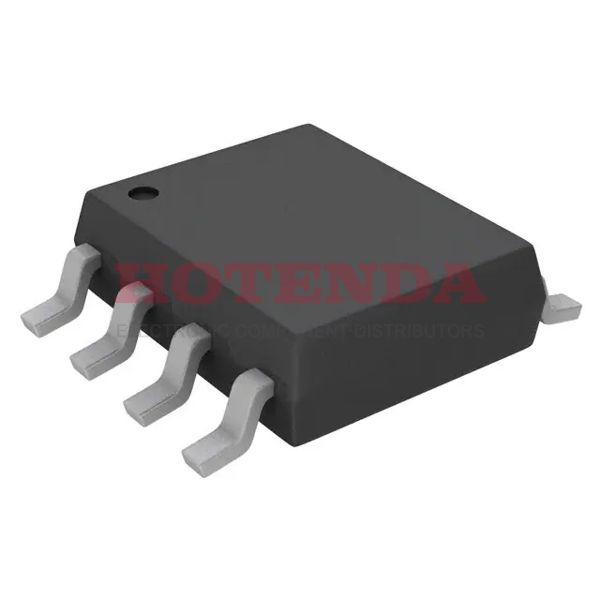

Manufacturer part number:TLP2409(F)

Manufacturer:Toshiba Semiconductor and Storage

Description:TLP2409(F) datasheet pdf and Optoisolators - Transistor, Photovoltaic Output product details from Toshiba Semiconductor and Storage stock available on our website

Case Package:SOT-23

Datasheet:TLP2409(F) Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2010
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Power Dissipation	100mW
Reach Compliance Code	unknown
Voltage - Isolation	3750Vrms
Output Type	Transistor
Number of Channels	1
Power Dissipation	100mW
Voltage - Forward (Vf) (Typ)	1.57V
Input Type	DC
Forward Current	25mA
Max Output Voltage	20V
Output Current per Channel	16mA
Max Collector Current	16mA
Reverse Breakdown Voltage	5V
Max Input Current	25mA
Current Transfer Ratio (Min)	20% @ 16mA
Turn On / Turn Off Time (Typ)	800ns, 800ns (Max)
RoHS Status	RoHS Compliant
