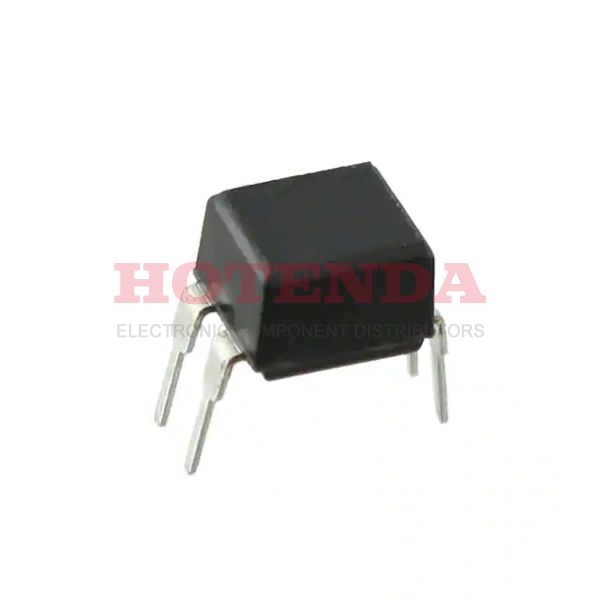

TLP220GA(F)

  • TLP220GA(F)
  • TLP220GA(F)

TLP220GA(F)

TLP220GA(F)

Toshiba Semiconductor and Storage

SSR RELAY SPST-NO 120MA 0-400V

SOT-23

TLP220GA(F) Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 8 Weeks
Mounting Type Through Hole
Package / Case 4-DIP (0.300, 7.62mm)
Packaging Tube
Published 2013
Series TLP220GA
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Subcategory Solid State Relays
Reach Compliance Code unknown
Termination Style PC Pin
Operating Temperature (Max) 65°C
Operating Temperature (Min) -20°C
Output Type AC, DC
Circuit SPST-NO (1 Form A)
Voltage - Input 1.63VDC
Input Type DC
Voltage - Load 0V~400V
On-State Resistance (Max) 35Ohm
Overall Height 3.65mm
Load Current 120mA
Overall Length 4.58mm
Control Current 0.003A
Control Voltage 1.45V
RoHS Status RoHS Compliant
Pricing & Ordering
Quantity Unit Price Ext. Price
100 $5.50800 $550.8
