LP2980AIBP-3.3/NOPB

LP2980AIBP-3.3/NOPB

LP2980AIBP-3.3/NOPB

Texas Instruments

Enable Fixed LP2980 PMIC 5-VFBGA

SOT-23

LP2980AIBP-3.3/NOPB Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Mount Surface Mount
Mounting Type Surface Mount

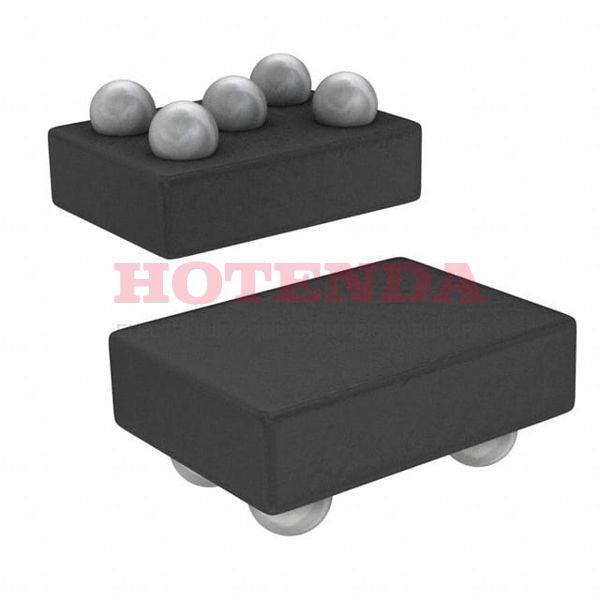

Package / Case 5-VFBGA
Number of Pins 5
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number LP2980
Current - Supply (Max) 1.2mA
Qualification Status Not Qualified
Voltage - Input (Max) 16V
Output Voltage 3.3V
Output Type Fixed
Output Configuration Positive
Current - Output 50mA
Control Features Enable
Output Voltage 1 3.3V
Input Voltage (Min) 4.3V
Number of Regulators 1
Protection Features Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq) 95μA
Voltage Dropout (Max) 0.22V @ 50mA
PSRR 63dB (1kHz)
Dropout Voltage 120mV
Min Current Limit 100mA
Height Seated (Max) 0.9mm
Width 0.93mm
RoHS Status ROHS3 Compliant
LP2980AIBP-3.3/NOPB Product Details

LP2980AIBP-3.3/NOPB Overview


In the case of Cut Tape (CT) cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a 5-VFBGA case. The PMIC chip has 5 terminations. Fixed is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Surface Mount are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -40°C~125°C degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. Currently, 50mA are being output by it at the moment. This voltage regulator IC has a dropout voltage of 10 volts. On the chip, there are pins for the 5 axis. Here's the basic part number for this IC regulator: LP2980.

LP2980AIBP-3.3/NOPB Features


120mV dropout voltage


LP2980AIBP-3.3/NOPB Applications


There are a lot of Texas Instruments
LP2980AIBP-3.3/NOPB Linear Voltage Regulators applications.


  • Switching regulator
  • Multiple-power supply system
  • Digital audio player
  • Digital TV
  • Smartcard
  • Industrial equipment
  • DVD and CD-ROM drive
  • Quick charge protocols
  • Measurement and control euipment
  • Aging system
