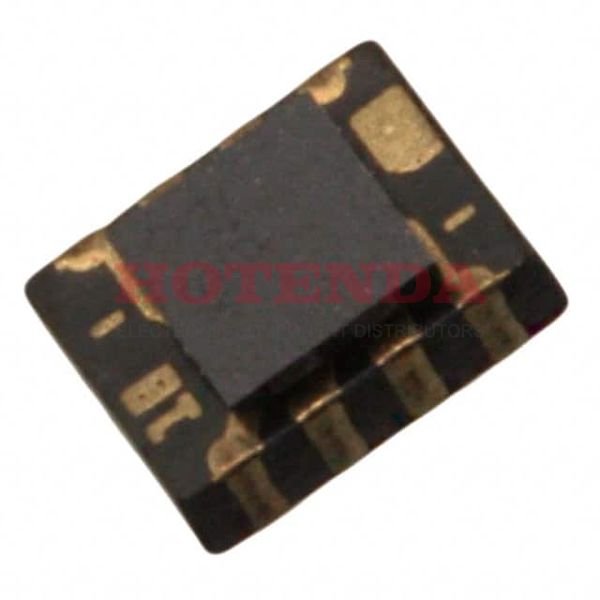

LMZ10500SILR

new-10%

Manufacturer part number:LMZ10500SILR

Manufacturer:Texas Instruments

Description:LMZ10500SILR datasheet pdf and DC DC Converters product details from Texas Instruments stock available on our website

Case Package:SOT-23

Datasheet:LMZ10500SILR Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-LDFN Exposed Pad, Module
Number of Pins	8
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	SIMPLE SWITCHER®
Size / Dimension	0.12Lx0.10W x 0.06 H 3.0mmx2.6mmx1.5mm
Feature	OCP, OTP, SCP, UVLO
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	8
ECCN Code	EAR99
Type	Non-Isolated PoL Module
Applications	ITE (Commercial)
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65mm
Depth	2.6mm
Base Part Number	LMZ10500
Number of Outputs	1
Efficiency	95%
Output Voltage	3.6V
Output Type	Adjustable
Max Output Current	650mA
Voltage - Output 1	0.6V~3.6V
Operating Supply Voltage	5.5V
Input Voltage-Nom	3.6V
Max Supply Voltage	5.5V
Min Supply Voltage	2.7V
Nominal Supply Current	6.5mA
Output Current	650mA
Control Features	Enable, Active High
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Switcher Configuration	BUCK
Max Duty Cycle	100 %
Max Junction Temperature (Tj)	125°C
Switching Frequency	2MHz
Height	1.5mm
Length	3mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
