UMK105CG560JVHF

  • UMK105CG560JVHF
  • UMK105CG560JVHF

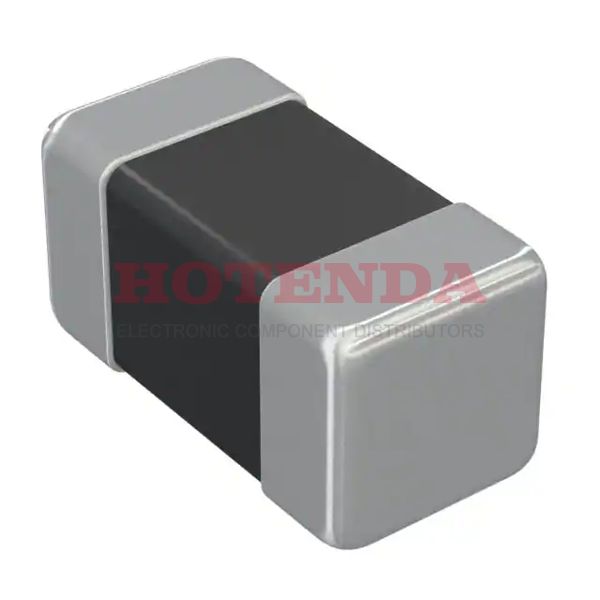

UMK105CG560JVHF

UMK105CG560JVHF

Taiyo Yuden

UMK105CG560JVHF datasheet pdf and Ceramic Capacitors product details from Taiyo Yuden stock available on our website

SOT-23

UMK105CG560JVHF Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 17 Weeks
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Terminal Shape WRAPAROUND
Weight 652.039032μg
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series M
Size / Dimension 0.039Lx0.020W 1.00mmx0.50mm
Tolerance ±5%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient C0G NP0
Applications Automotive
Capacitance 56pF
Voltage - Rated DC 50V
Packing Method TAPE, PAPER
Case Code (Metric) 1005
Case Code (Imperial) 0402
Dielectric C0G
Temperature Characteristics Code C0G
Multilayer Yes
Halogen Free Halogen Free
Height 500μm
Thickness (Max) 0.022 0.55mm
Thickness 558.8μm
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
Pricing & Ordering
Quantity Unit Price Ext. Price
UMK105CG560JVHF Product Details

UMK105CG560JVHF Overview


Programs on this device are of 0.039Lx0.020W 1.00mmx0.50mm size/dimension.As a general rule, temperature coefficient of resistance is simply the change in electrical resistance of a substance per degree change in temperature, and its value is C0G NP0.A voltage of 50V can be used for operation.

UMK105CG560JVHF Features


a size/dimension of 0.039Lx0.020W 1.00mmx0.50mm
with C0G NP0 being the highest temperature coefficient
with the voltage - Rated DC of 50V

UMK105CG560JVHF Applications


There are a lot of Taiyo Yuden UMK105CG560JVHF applications of ceramic capacitors.

  • Power supply circuit
  • Mobile devices
  • General electronic equipment
  • Servers, PCs, tablets
