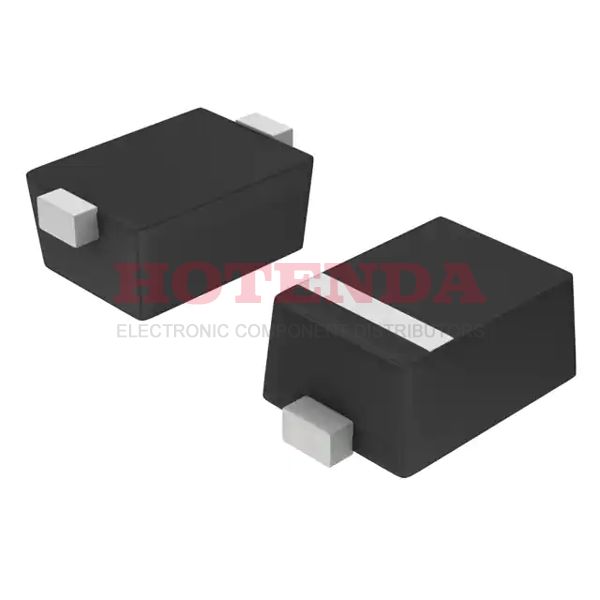

ZENER DIODE 37Ohm ±5% 13V 100nA @ 10V -65°C~150°C 200mW 2 Terminations SOD-923

SOT-23

NZ9F13VT5G Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Lifecycle Status LAST SHIPMENTS (Last Updated: 16 hours ago)
Factory Lead Time 18 Weeks
Mounting Type Surface Mount
Package / Case SOD-923
Surface Mount YES
Number of Pins 2
Diode Element Material SILICON
Operating Temperature -65°C~150°C
Packaging Tape & Reel (TR)
Published 2008
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8541.10.00.50
Max Power Dissipation 200mW
Terminal Position DUAL
Terminal Form FLAT
Pin Count 2
Number of Elements 1
Polarity UNIDIRECTIONAL
Impedance 37Ohm
Element Configuration Single
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 100nA @ 10V
Power Dissipation 200mW
Voltage - Forward (Vf) (Max) @ If 900mV @ 10mA
Max Reverse Leakage Current 100nA
Impedance-Max 37Ohm
Test Current 5mA
Reference Voltage 13V
Zener Voltage 13V
Voltage Tol-Max 5%
Voltage Tolerance 5%
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
1 $0.05000 $0.05
500 $0.0495 $24.75
1000 $0.049 $49
1500 $0.0485 $72.75
2000 $0.048 $96
2500 $0.0475 $118.75
NZ9F13VT5G Product Details

NZ9F13VT5G Overview


An electrical device such as this requires reverse leakage current of 100nA @ 10V.A voltage of 5% is considered to be the maximum that can be output (Tol).A maximum reverse leakage current is reached at 100nA.As soon as the maximum voltage - Forward (Vf) is supplied, it reaches 900mV @ 10mA V.

NZ9F13VT5G Features


reverse leakage current of 100nA @ 10V
100nA @ 10V is the maximum voltage (Tol)
Reverse leakage current reaches 100nA


NZ9F13VT5G Applications


There are a lot of ON Semiconductor
NZ9F13VT5G applications of zener single diodes.
