NZ9F10VT5G

  • NZ9F10VT5G
  • NZ9F10VT5G

NZ9F10VT5G

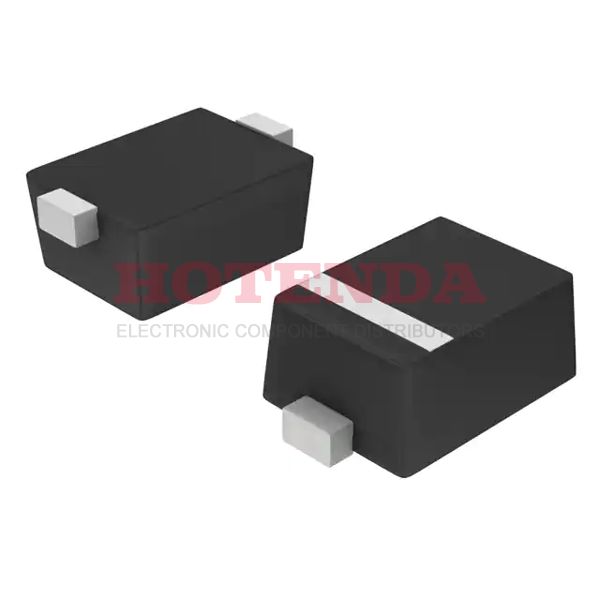

NZ9F10VT5G

ON Semiconductor

ZENER DIODE 30Ohm ±5% 10V 100nA @ 7V -65°C~150°C 200mW 2 Terminations SOD-923

SOT-23

NZ9F10VT5G Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 13 Weeks
Mounting Type Surface Mount
Package / Case SOD-923
Surface Mount YES
Number of Pins 2
Diode Element Material SILICON
Operating Temperature -65°C~150°C
Packaging Tape & Reel (TR)
Published 2010
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8541.10.00.50
Max Power Dissipation 200mW
Terminal Position DUAL
Terminal Form FLAT
Pin Count 2
Number of Elements 1
Polarity UNIDIRECTIONAL
Impedance 30Ohm
Element Configuration Single
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 100nA @ 7V
Power Dissipation 200mW
Voltage - Forward (Vf) (Max) @ If 900mV @ 10mA
Max Reverse Leakage Current 100nA
Impedance-Max 30Ohm
Test Current 5mA
Reference Voltage 10V
Zener Voltage 10V
Voltage Tol-Max 5%
Voltage Tolerance 5%
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
1 $0.087840 $0.08784
500 $0.064588 $32.294
1000 $0.053824 $53.824
2000 $0.049379 $98.758
5000 $0.046149 $230.745
10000 $0.042929 $429.29
15000 $0.041518 $622.77
50000 $0.040824 $2041.2
NZ9F10VT5G Product Details

NZ9F10VT5G Overview


An electrical device like this requires a reverse leakage current of 100nA @ 7V.A maximum voltage (Tol) can be supplied if 5% is set.During reverse leakage, the maximum current reaches 100nA.For operation, diode reaches 900mV @ 10mA at the maximum voltage - Forward (Vf).

NZ9F10VT5G Features


reverse leakage current of 100nA @ 7V
100nA @ 7V is the maximum voltage (Tol)
Reverse leakage current reaches 100nA


NZ9F10VT5G Applications


There are a lot of ON Semiconductor
NZ9F10VT5G applications of zener single diodes.
