NCP134AMX110TCG

  • NCP134AMX110TCG
  • NCP134AMX110TCG

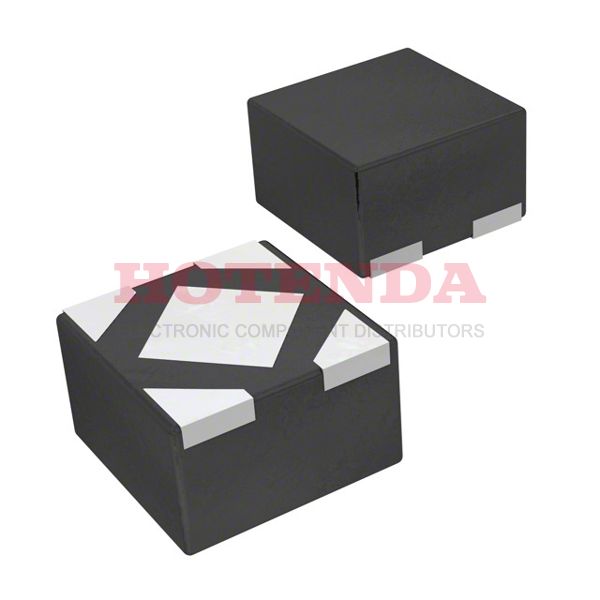

NCP134AMX110TCG

NCP134AMX110TCG

ON Semiconductor

Enable Fixed 0.8mm Gold PMIC 4-XDFN Exposed Pad

SOT-23

NCP134AMX110TCG Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 8 Weeks
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-XDFN Exposed Pad
Number of Pins 4
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2015
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Voltage - Input (Max) 5.5V
Output Voltage 1.1V
Output Type Fixed
Max Output Current 500mA
Output Configuration Positive
Control Features Enable
Accuracy 0.5 %
Output Voltage 1 1.1V
Number of Regulators 1
Min Input Voltage 800mV
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Voltage Dropout (Max) 0.25V @ 500mA
PSRR 80dB ~ 70dB (1kHz)
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
NCP134AMX110TCG Product Details

NCP134AMX110TCG Overview


This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 4-XDFN Exposed Pad package. There are 4 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~85°C TA degrees. This regulator's output function is configured to be Positive. The component's pin number remains 4. It works in 500mA output current at most

NCP134AMX110TCG Features




NCP134AMX110TCG Applications


There are a lot of ON Semiconductor
NCP134AMX110TCG Linear Voltage Regulators applications.


  • Home electric appliance
  • Battery-powered device
  • Communication device
  • Personal communication device
  • Portable telephone
  • Electronic notebook
  • Camera
  • Video equipment
  • CPU power supply
  • Switching regulator
