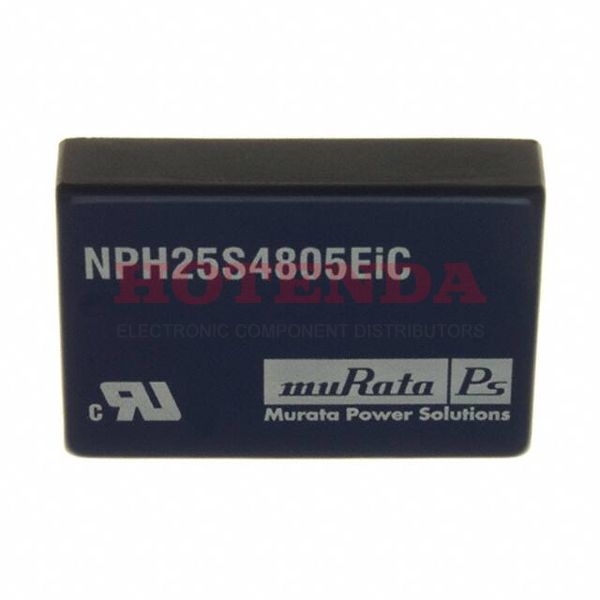

NPH25S4805EIC

new-10%

Manufacturer part number:NPH25S4805EIC

Manufacturer:Murata Power Solutions Inc.

Description:NPH25S4805EIC datasheet pdf and DC DC Converters product details from Murata Power Solutions Inc. stock available on our website

Case Package:SOT-23

Datasheet:NPH25S4805EIC Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	6-DIP Module
Number of Pins	6
Operating Temperature	-40°C~110°C
Packaging	Tube
Series	NPH25S (25W)
Size / Dimension	1.97Lx1.38W x 0.39 H 50.0mmx35.1mmx9.9mm
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Type	Isolated Module
Terminal Finish	Gold (Au) - with Nickel (Ni) barrier
Applications	ITE (Commercial)
Subcategory	Other Analog ICs
Power Rating	25W
Max Power Dissipation	25W
Technology	HYBRID
Terminal Position	DUAL
Terminal Form	PIN/PEG
Number of Functions	1
Depth	50mm
Pin Count	6
Number of Outputs	1
Efficiency	85%
Voltage - Isolation	1.5kV
Output Voltage	5.1V
Max Output Current	5A
Operating Supply Voltage	48V
Input Voltage-Nom	48V
Trim/Adjustable Output	YES
Output Current	5A
Output Power	25W
Nominal Input Voltage	48V
Max Output Power	25W
Isolation	Isolated
Nominal Output Voltage	5.1V
Max Input Voltage (DC)	75V
Min Input Voltage (DC)	36V
Height	9.906mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
